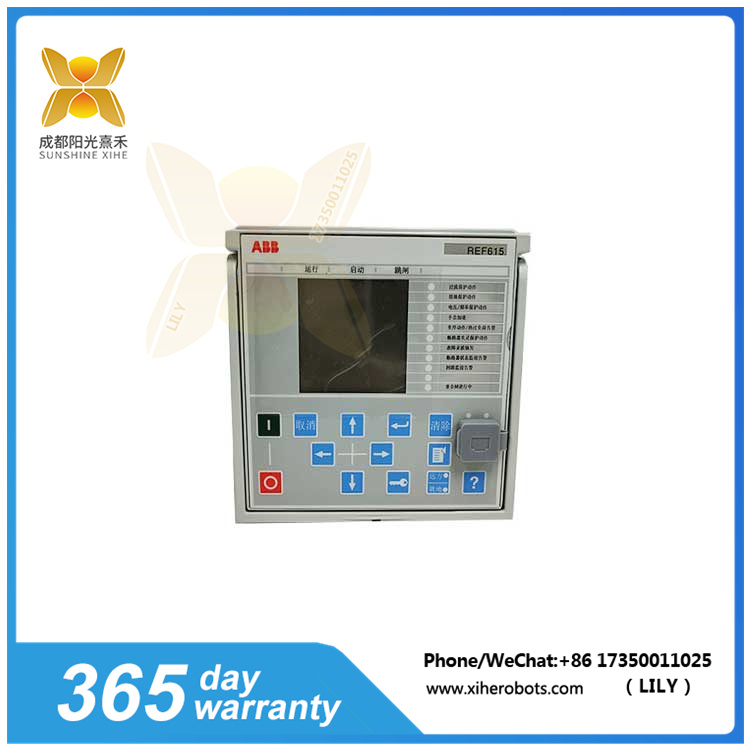

ABB REF615C_E HCFFAEAGANB2BAA11E 馈线保护和测控装置 成都阳光熹禾

产品细节说明:REF615C_E HCFFAEAGANB2BAA11E ABB 馈线保护和测控装置

1. 保护功能：提供包括方向性过流、无方向过流、接地故障保护、电压、频率和电能质量保护及测量功能。
2. 通信协议：支持 IEC 61850 通信标准，包括并行冗余协议（PRP）和高可用性无缝冗余度协议（HSR），以及其他工业标准通信协议如 Modbus、DNP3 和 IEC 60870-5-103。
3. 用户界面：配备大液晶屏，显示单线图，可通过本地或基于网络的 HMI 访问。
4. 安装和测试：采用快速安装和测试的可插拔式设计。
5. 状态监测：提供全面的状态监测功能，包括软硬件、通信、VT熔丝断线、电流回路、断路器跳闸回路和断路器本身的状态。
6. 快速响应：具备快速的短路、接地故障定位功能。

REF615C_E HCFFAEAGANB2BAA11E

产品详情参数:REF615C_E HCFFAEAGANB2BAA11E ABB 馈线保护和测控装置

1. 配置灵活性：REF615 提供多种标准配置，适应于常用的馈线保护和测控应用，并且保护逻辑和相关功能针对特定市场需求进行了优化。
2. 集成弧光保护：可选配件支持集成三个弧光保护通道，无需额外购置和安装弧光保护装置即可实现对开关柜断路器、电缆和母线室的弧光检测和快速保护。
3. 操作权限：定义了不同级别的操作权限，包括浏览者、操作员、工程师和管理员，以防止未授权用户误操作并保证用户按照相应权限操作。

REF615C_E HCFFAEAGANB2BAA11E ABB  应用领域:

ABB REF615C_E HCFFAEAGANB2BAA11E 是一款馈线保护和测控装置，它是 ABB Relion® 615 产品系列的一部分，专门用于保护、控制、测量和监视公共和工业配电系统中的架空线和电缆馈线。

Product details: REF615C_E HCFFAEAGANB2BAA11E ABB feeder protection and measurement device

Protection function: Provides directional overcurrent, non directional overcurrent, ground fault protection, voltage, frequency, and power quality protection and measurement functions.

Communication Protocol: Supports the IEC 61850 communication standard, including Parallel Redundancy Protocol (PRP) and High Availability Seamless Redundancy Protocol (HSR), as well as other industry standard communication protocols such as Modbus, DNP3, and IEC 60870-5-103.

User interface: Equipped with a large LCD screen, displaying single line diagrams, accessible through local or network-based HMI.

Installation and testing: Adopting a plug and play design for quick installation and testing.

Status monitoring: Provides comprehensive status monitoring functions, including software and hardware, communication, VT fuse breakage, current circuit, circuit breaker tripping circuit, and the status of the circuit breaker itself.

Quick response: It has the function of quickly locating short circuits and grounding faults.

Product details and parameters: REF615C_E HCFFAEAGANB2BAA11E ABB feeder protection and measurement device

Configuration flexibility: REF615 provides multiple standard configurations that are suitable for commonly used feeder protection and measurement applications, and the protection logic and related functions are optimized for specific market needs.

Integrated arc protection: Optional accessories support the integration of three arc protection channels, which can achieve arc detection and rapid protection of switchgear circuit breakers, cables, and busbar rooms without the need for additional purchase and installation of arc protection devices.

Operation permissions: Different levels of operation permissions are defined, including browser, operator, engineer, and administrator, to prevent unauthorized users from operating incorrectly and ensure that users operate according to the corresponding permissions.

REF615C_E HCFFAEAGANB2BAA11E ABB application areas:

ABB REF615C_E HCFFAEAGANB2BAA11E is a feeder protection and measurement device, which is ABB Relion ® Part of the 615 product series, specifically designed to protect, control, measure, and monitor overhead lines and cable feeders in public and industrial distribution systems.
