产品细节说明:TVME200-10  TEWS VME总线载体控制器

1. VME总线兼容性：
   • 设计符合VMEbus规范ANSI/VITA 1-1994，保证了与VMEbus系统中各种工业包的兼容性。
   • 支持VME 6U和VME64x扩展，提供灵活的系统集成能力。
2. 模块扩展性：
   • 最多可容纳4个单尺寸或2个双尺寸工业包(IP)模块，为过程控制、医疗系统、电信和交通控制等应用构建模块化、灵活且经济高效的I/O解决方案。
3. 通信接口：
   • 支持双RS-232端口等通信接口，便于与其他设备和系统进行数据传输和交互。
4. 内存与存储：
   • 提供标准存储器和扩展内存选项，满足不同的数据存储需求。
   • 标准存储器映射到VME A24空间，大小可编程，每个IP从32 K字节到2 M字节不等。
   • 扩展内存映射到VME A32空间，每个IP有8 Mbyte的固定空间。
5. 中断与DMA支持：
   • 支持VME IRQ1-7中断，满足实时性要求较高的应用场景。
   • 提供DMA支持（注：部分资料指出不支持DMA，这里可能因产品配置或版本不同而有所差异）。
6. 安全性与配置：
   • 具备安全功能，当激活时，通过要求密码来访问配置设施，防止对配置进行任何未经授权的更改。
7. 数据收集与归档：
   • 数据网OPC使工业数据的收集和归档变得简单，用户可以通过易于使用的配置工具指定应记录的数据集以及记录的时间间隔。
   • 具备触发命令选项，允许用户指定数据仅在特定时间或特定条件下记录。

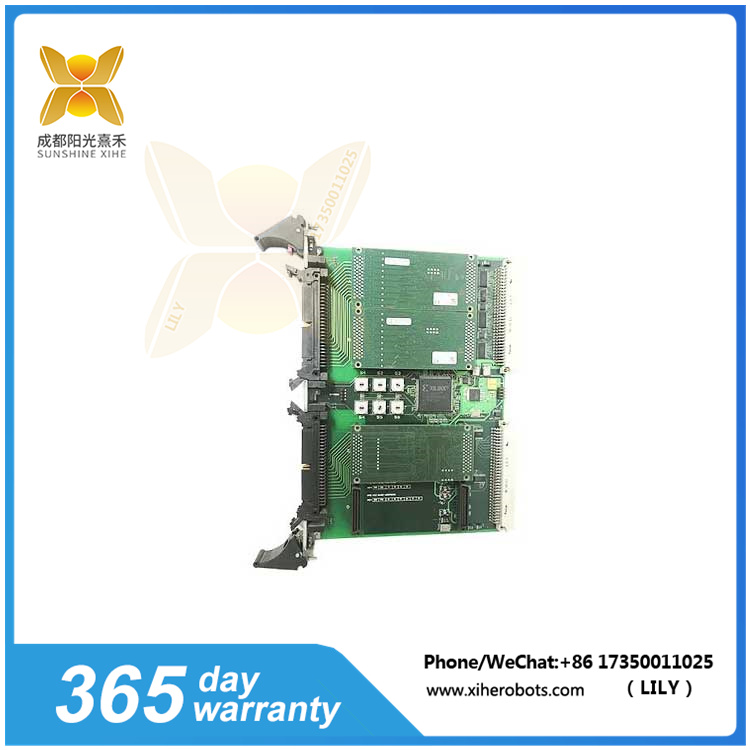

TVME200-10

产品详情参数:TVME200-10  TEWS VME总线载体控制器

• 品牌与型号：TEWS TVME200-10
• 类型：VME总线载体控制器
• 防护等级：IP30
• 环境温度：支持较宽的工作温度范围，如-60℃至某高温值

TVME200-10  TEWS  应用领域:

广泛应用于工业控制、军事和航空航天、测试和测量、数据采集、通信等多个领域。

Product Details: TVME200-10 TEWS VME Bus Carrier Controller
VME bus compatibility:
The design complies with the VMEbus standard ANSI/VITA 1-1994, ensuring compatibility with various industrial packages in the VMEbus system.
Supports VME6U and VME64x expansion, providing flexible system integration capabilities.
Module Scalability:
It can accommodate up to 4 single size or 2 dual size industrial package (IP) modules, building modular, flexible, and cost-effective I/O solutions for applications such as process control, medical systems, telecommunications, and traffic control.
Communication interface:
Supports communication interfaces such as dual RS-232 ports, facilitating data transmission and interaction with other devices and systems.
Memory and Storage:
Provide standard memory and expandable memory options to meet different data storage needs.
Standard memory is mapped to VME A24 space, with programmable sizes ranging from 32K bytes to 2MB bytes per IP.
Expand memory mapping to VME A32 space, with a fixed space of 8 Mbyte per IP.
Interrupt and DMA support:
Support VME IRQ1-7 interrupts to meet high real-time requirements in application scenarios.
Provide DMA support (note: some materials indicate that DMA is not supported, which may vary depending on product configuration or version).
Security and configuration:
Equipped with security features, when activated, the configuration facility can be accessed by requiring a password to prevent any unauthorized changes to the configuration.
Data collection and archiving:
Data Network OPC simplifies the collection and archiving of industrial data, allowing users to specify the datasets to be recorded and the time intervals for recording through easy-to-use configuration tools.
Equipped with trigger command options, allowing users to specify that data should only be recorded at specific times or under specific conditions.
Product details and parameters: TVME200-10 TEWS VME bus carrier controller
Brand and Model: TEWS TVME200-10
Type: VME Bus Carrier Controller
Protection level: IP30
Environmental temperature: Supports a wide range of operating temperatures, such as -60 ℃ to a certain high temperature value
TVME200-10 TEWS application areas:

Widely used in various fields such as industrial control, military and aerospace, testing and measurement, data acquisition, communication, etc.
