产品细节说明:VMIVME-7750 VMIVME-7750-744001 350-027750-744001 F 单板计算机
- 处理器：
- 搭载主频高达1.26 GHz的Pentium® III处理器，具备超标量架构，允许每个时钟周期执行三条指令。
- 处理器具有32位寻址和64位数据总线，支持高达512 Kbyte（在某些配置中可能为1.26 GHz时达到512 Kbyte）的高级传输缓存（L2缓存），提供高带宽和高性能。
- 内存：
- 接受一个144针SDRAM SODIMM，最大内存容量可达512 Mbyte。
- 使用PC133 SDRAM，通过Intel® 815E芯片组实现133 MHz系统总线。
- 图形适配器：
- 内置815E芯片组AGP图形适配器，支持高分辨率图形和多媒体质量视频。
- 图形适配器辅以4 Mbyte外部同步DRAM高速缓存和高带宽64位数据接口，支持高达1,600 x 1,200 x 256色（单视图模式）的屏幕分辨率。
- 网络接口：
- 双以太网控制器，支持10BaseT和100BaseTX，通过两个RJ45连接器实现网络连接。
- 支持远程局域网启动，采用Lanworks Technologies公司的BootWare®技术，提供NetWare、TCP/IP或RPL网络协议的远程启动功能。
- 操作系统支持：
- 支持ows 2000、VxWorks®、Solaris™、QNX®、LynxOS®和Linux®等操作系统。
VMIVME-7750 VMIVME-7750-744001 350-027750-744001 F
产品详情参数:VMIVME-7750 VMIVME-7750-744001 350-027750-744001 F 单板计算机
- 类型：Pentium® III
- 主频：高达1.26 GHz
- 缓存：512 Kbyte（高级传输缓存，某些配置可能达到512 Kbyte）
- 架构：32位寻址，64位数据总线，超标量架构支持每个时钟周期执行三条指令
VMIVME-7750 VMIVME-7750-744001 350-027750-744001 F 应用领域:
VMIVME-7750及VMIVME-7750-744001 350-027750-744001 F是GE公司生产的高性能单板计算机，专为工业自动化和过程控制领域设计。它们具备强大的处理能力、丰富的接口和灵活的配置选项，能够满足各种复杂应用的需求。

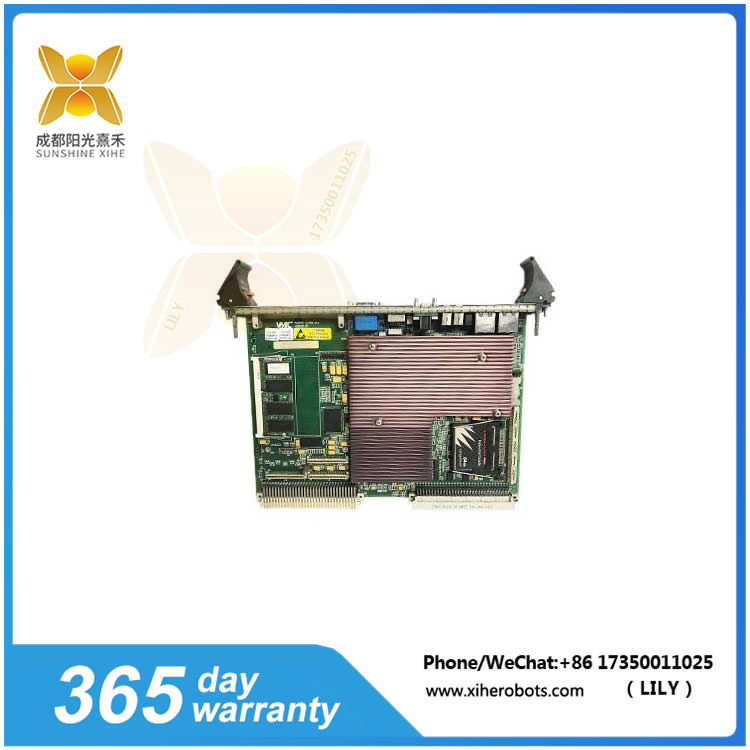

Product Details: VMIVME-7750 VMIVMIVME-7750-744001 350-027750-744001 F Single Board Computer
Processor:
Equipped with a Pentium with a clock speed of up to 1.26 GHz ® The III processor has a superscalar architecture that allows for the execution of three instructions per clock cycle.
The processor has 32-bit addressing and a 64 bit data bus, supporting up to 512 Kbyte (which may reach 512 Kbyte in some configurations at 1.26 GHz) of advanced transport cache (L2 cache), providing high bandwidth and high performance.
Memory:
Accept a 144 pin SDRAM SODIMM with a maximum memory capacity of 512 Mbyte.
Using PC133 SDRAM and Intel ® The 815E chipset implements a 133 MHz system bus.
Graphics adapter:
Built in 815E chipset AGP graphics adapter, supporting high-resolution graphics and multimedia quality videos.
The graphics adapter is equipped with a 4 Mbyte external synchronous DRAM cache and a high bandwidth 64 bit data interface, supporting screen resolutions of up to 1600 x 1200 x 256 colors (single view mode).
Network interface:
Dual Ethernet controller, supports 10BaseT and 100BaseTX, and achieves network connection through two RJ45 connectors.
Support remote LAN startup, using BootWare from Lanworks Technologies ® Technology that provides remote boot functionality for NetWare, TCP/IP, or RPL network protocols.
Operating system support:
Supports Windows 2000, VxWorks, Solaris, QNX, Lynx OS, and Linux ® Waiting for the operating system.
Product details and parameters: VMIVME-7750 VMIVMIVME-7750-744001 350-027750-744001 F single board computer
Type: Pentium ® III
Main frequency: up to 1.26 GHz
Cache: 512 Kbyte (Advanced Transport Cache, some configurations may reach up to 512 Kbyte)
Architecture: 32-bit addressing, 64 bit data bus, superscalar architecture supports executing three instructions per clock cycle
VMIVME-7750 VMIVMME-7750-744001 350-027750-744001 F Application areas:
VMIVME-7750 and VMIVMME-7750-744001 350-027750-744001 F are high-performance single board computers produced by GE, specifically designed for the fields of industrial automation and process control. They have powerful processing capabilities, rich interfaces, and flexible configuration options, which can meet the needs of various complex applications.
