DS200PCCAG5ACB  GE 电源连接卡 成都阳光熹禾

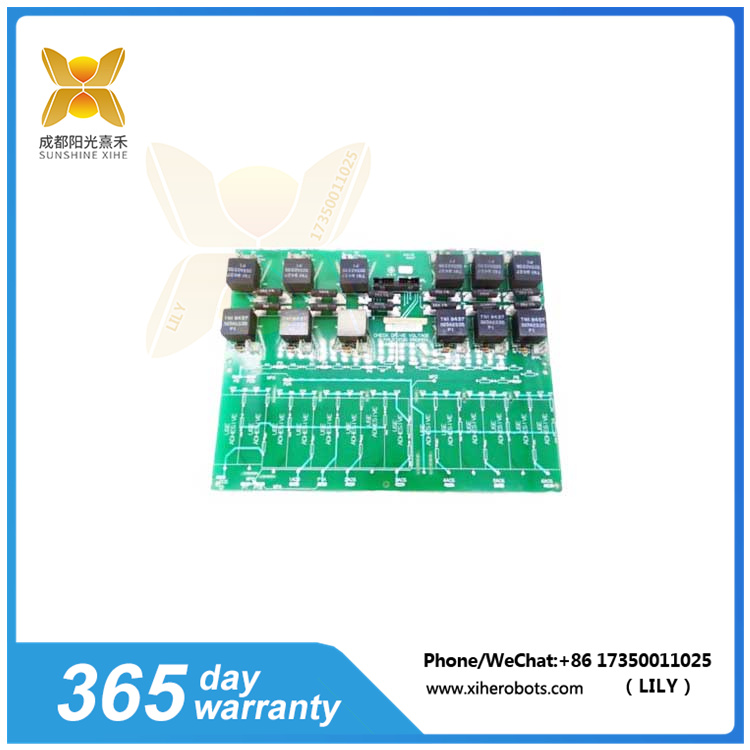

产品细节说明:DS200PCCAG5ACB  GE 电源连接卡

1. 脉冲变压器连接：通过脉冲变压器将栅极驱动馈送到SCR桥，实现精确控制。
2. 高马力适配：该板被指定为高马力PCCA（Power Control Center Assembly，电源控制中心组件），应与高马力控制器一起使用，确保在高负载条件下的稳定运行。
3. 去缓冲器设计：已移除所有缓冲器并将其重新安置在系统中的其他位置，简化了设计并提高了效率。
4. 插头连接器：具有12个插头连接器，用于向SCR桥提供正向和反向的栅极脉冲信号，并支持与电源板进行通信。
5. 独立或共享总线变压器：可根据系统需求选择独立或共享的总线变压器，提供灵活的配置选项。
6. 跳线使用：总共使用了四个跳线（WP4、WP3、JP2和JP1），用于实现不同的电路连接和配置。

DS200PCCAG5ACB

产品详情参数:DS200PCCAG5ACB  GE 电源连接卡

• 品牌与型号：GE DS200PCCAG5ACB
• 类型：电源连接卡
• 用途：设计用于将SCR（可控硅整流器）功率桥连接到驱动器的控制电路，是工业自动化系统中的关键组件。
• 该板通常位于驱动控制板的正后方，而驱动控制板则位于电源板的正后方。这种布局有助于将PCCA固定到板载体的背面，并提供稳定的电气连接。
• 它由六个塑料支架固定在托架中，确保在运行过程中的稳定性和可靠性。

DS200PCCAG5ACB  GE  应用领域:

DS200PCCAG5ACB广泛应用于各种工业自动化领域，包括但不限于：

• 制造业：如汽车制造、机械加工等行业的生产线控制。
• 能源行业：如电力、石油、天然气等行业的自动化控制系统。
• 交通运输：如轨道交通、港口物流等领域的自动化调度和控制系统。

Product Details: DS200PCCAG5ACB GE Power Connection Card
Pulse transformer connection: The gate drive is fed to the SCR bridge through a pulse transformer to achieve precise control.
High horsepower adaptation: This board is designated as a high horsepower PCCA (Power Control Center Assembly) and should be used in conjunction with a high horsepower controller to ensure stable operation under high load conditions.
Buffer removal design: All buffers have been removed and relocated to other locations in the system, simplifying the design and improving efficiency.
Plug connector: It has 12 plug connectors, which are used to provide forward and reverse gate pulse signals to the SCR bridge and support communication with the power board.
Independent or shared bus transformer: Independent or shared bus transformers can be selected according to system requirements, providing flexible configuration options.
Jumper usage: A total of four jumpers (WP4, WP3, JP2, and JP1) were used to achieve different circuit connections and configurations.

Product Details and Parameters: DS200PCCAG5ACB GE Power Connection Card
Brand and Model: GE DS200PCCAG5ACB
Type: Power Connection Card
Purpose: Designed to connect the SCR (silicon controlled rectifier) power bridge to the control circuit of the driver, it is a key component in industrial automation systems.
This board is usually located directly behind the drive control board, while the drive control board is located directly behind the power board. This layout helps to secure PCCA to the back of the board carrier and provides stable electrical connections.
It is fixed in the bracket by six plastic brackets, ensuring stability and reliability during operation.
DS200PCCAG5ACB GE Application Fields:

DS200PCCAG5ACB is widely used in various industrial automation fields, including but not limited to:

Manufacturing industry: production line control in industries such as automobile manufacturing and mechanical processing.
Energy industry: automation control systems for industries such as electricity, oil, and natural gas.
Transportation: Automated scheduling and control systems in fields such as rail transit and port logistics.
