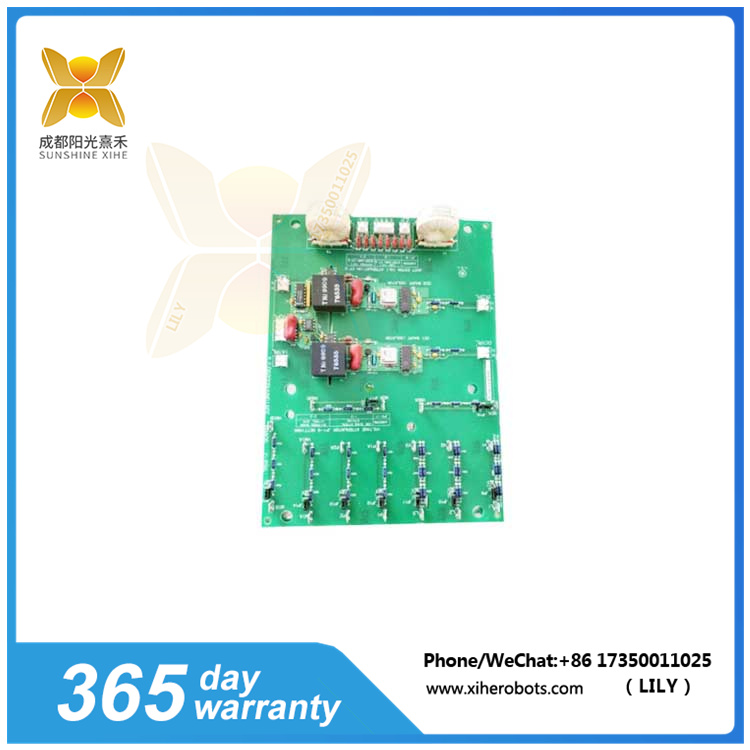

产品细节说明:DS200SHVMG1AGE GE 高压 M 框架接口板
- 接口功能：作为高压M框架的接口板，DS200SHVMG1AGE能够实现与系统中其他组件的高效连接和数据交换。
- 转换功能：该板具有将-500至500 mV之间的分流信号转换为0至500 kHz之间的差频输出的能力，这一转换过程通过板载的VCO（压控振荡器）电路实现。
- 电压衰减：板载有直流正和直流负电压电阻串P1和P2，可根据需要衰减DS200SHVMG1AGE上的直流电压。此外，还包含17个可选跳线，用于配置驱动器的衰减。
- 电流互感器：交流线路电流包括一个10:1电流互感器衰减器，用于调整输入电流。
- 硬件组件：具有可配置跳线、接线插头连接器和插接连接器等硬件组件，但不含LED、保险丝、测试点和开关等部分Mark V板常见的硬件。
DS200SHVMG1AGE
产品详情参数:DS200SHVMG1AGE GE 高压 M 框架接口板
- 跳线与连接器：具有17个跳线和6个2针连接器，以及2个4针连接器。跳线在电路板表面标识为JP1到JP18。
- 尺寸与安装：电路板的尺寸为7 x 9.5英寸，用于固定电路板的螺丝孔位于所有四个角上。
- 使用环境：适用于常温常压环境，但具有较宽的存储温度范围（-40°F至+176°F或-40°C至+80°C，具体范围可能因不同来源略有差异）。
- 功耗：能量功耗最大为4.6 watts
DS200SHVMG1AGE GE 应用领域:
DS200SHVMG1AGE高压M框架接口板广泛应用于工业自动化控制系统中，特别是在需要高精度信号转换和电压衰减的场合。它可以与Mark V板系列中的其他组件协同工作，实现复杂的控制逻辑和数据传输。
Product Details: DS200SHVMG1AGE GE High Voltage M Framework Interface Board
Interface function: As an interface board of the high-voltage M framework, DS200SHVMG1AGE can achieve efficient connection and data exchange with other components in the system.
Conversion function: This board has the ability to convert shunt signals between -500 and 500 mV into differential frequency outputs between 0 and 500 kHz. This conversion process is achieved through the onboard VCO (voltage controlled oscillator) circuit.
Voltage attenuation: The board carries DC positive and DC negative voltage resistor strings P1 and P2, which can attenuate the DC voltage on DS200SHVMG1AGE as needed. In addition, it also includes 17 optional jumpers for configuring the attenuation of the drive.
Current Transformer: The AC line current includes a 10:1 current transformer attenuator used to adjust the input current.
Hardware components: It has configurable jumper wires, wiring plug connectors, and plug-in connectors, but does not include some common Mark V board hardware such as LEDs, fuses, test points, and switches.
Product Details and Parameters: DS200SHVMG1AGE GE High Voltage M Framework Interface Board
Jumper and connector: It has 17 jumpers, 6 2-pin connectors, and 2 4-pin connectors. The jumper wires are marked as JP1 to JP18 on the surface of the circuit board.
Size and Installation: The size of the circuit board is 7 x 9.5 inches, and screw holes for securing the circuit board are located at all four corners.
Usage environment: Suitable for normal temperature and pressure environments, but with a wide storage temperature range (-40 ° F to+176 ° F or -40 ° C to+80 ° C, the specific range may vary slightly depending on different sources).
Power consumption: The maximum energy consumption is 4.6 watts
DS200SHVMG1AGE GE Application Fields:
The DS200SHVMG1AGE high-voltage M framework interface board is widely used in industrial automation control systems, especially in situations that require high-precision signal conversion and voltage attenuation. It can work in conjunction with other components in the Mark V board series to achieve complex control logic and data transmission.
