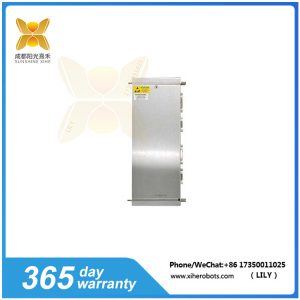

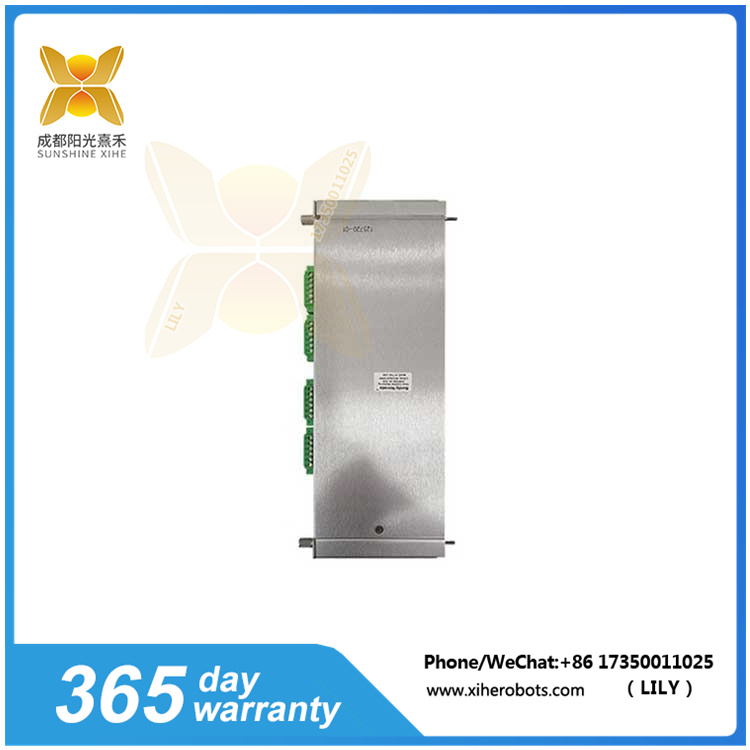

产品细节说明:3500/32 125720-01 BENTLY 4通道继电器模块
- 模块化设计：本特利3500监测系统采用模块化设计，使得3500/32 125720-01模块能够轻松集成到现有的计算机系统中。
- 多通道输出：作为4通道继电器模块，它能够提供四个继电器的输出量，满足复杂监测系统的需求。
- 可编程性：每个继电器都可以编程以执行所需的表决逻辑，增加了系统的灵活性和适应性。
- 报警驱动逻辑：每个继电器都具备“报警驱动逻辑”，支持使用AND和OR逻辑进行编程，并可利用框架中的任何监测器通道或通道组合提供的报警输入。
- 备件兼容性：125720-01作为备件编号，表明它可以作为3500/32系列4通道继电器模块的替换件。
产品详情参数:3500/32 125720-01 BENTLY 4通道继电器模块
- 接口：模块包含RS-232/RS-422串行接口，用于与主机连接进行数据采集和框架组态。
- 波特率：最大波特率达到38.4K，具体取决于接口类型。
- 电缆长度：RS-232接口电缆长度最长可达30m，RS-422接口电缆长度最长可达1200m。
- 应用场景：该模块广泛应用于汽轮机、压缩机、风机、水泵、磨煤机、齿轮箱、电机等大中型旋转机械的振动监测，覆盖钢铁、电力、冶金、化工、石化等多个行业。
3500/32 125720-01 BENTLY 应用领域:
3500/32 125720-01是本特利公司3500系列监测系统中一种重要的4通道继电器模块或其备件，具有模块化设计、多通道输出、可编程性和报警驱动逻辑等特点。它广泛应用于各种大中型旋转机械的振动监测领域，为设备的稳定运行提供了有力保障。
Product details: 3500/32 125720-01 BENTLY 4-channel relay module
Modular design: The Bentley 3500 monitoring system adopts a modular design, allowing the 3500/32 125720-01 module to be easily integrated into existing computer systems.
Multi channel output: As a 4-channel relay module, it can provide the output of four relays to meet the needs of complex monitoring systems.
Programmable: Each relay can be programmed to execute the required voting logic, increasing the flexibility and adaptability of the system.
Alarm driver logic: Each relay has an “alarm driver logic” that supports programming using AND and OR logic, and can utilize alarm inputs provided by any monitor channel or channel combination in the framework.
Spare parts compatibility: 125720-01, as the spare part number, indicates that it can be used as a replacement for the 3500/32 series 4-channel relay module.
Product details and parameters: 3500/32 125720-01 BENTLY 4-channel relay module
Interface: The module includes an RS-232/RS-422 serial interface, which is used to connect with the host for data acquisition and framework configuration.
Baud rate: The maximum baud rate reaches 38.4K, depending on the interface type.
Cable length: The longest RS-232 interface cable can reach 30m, and the longest RS-422 interface cable can reach 1200m.
Application scenarios: This module is widely used for vibration monitoring of large and medium-sized rotating machinery such as steam turbines, compressors, fans, water pumps, coal mills, gearboxes, and motors, covering multiple industries such as steel, power, metallurgy, chemical, and petrochemical.
3500/32 125720-01 BENTLY Application Fields:
3500/32 125720-01 is an important 4-channel relay module or its spare part in Bentley’s 3500 series monitoring system, featuring modular design, multi-channel output, programmability, and alarm drive logic. It is widely used in the field of vibration monitoring for various large and medium-sized rotating machinery, providing strong support for the stable operation of the equipment.
