通用电气制造了531X305NTBANG1卡，用作NTB / 3TB终端板。该端子板是作为 531X 系列替换驱动和励磁器板的成员开发的。 该板提供了许多接口系统功能。 该卡的功能包括继电器和串行输出、模拟量 I/O、电源和编码器。
安装此NTB/3TB终端板时，它为驱动器提供了一系列功能。安装时，531X305NTBANG1能够产生稳压和非稳压电源。稳压电源速率为 5 VDC 和 15 VDC，而非稳压电源的额定电压为 24 VDC 或 125 VAC。额定电压为 5 V 和 15 V 的编码器可以使用板载跳线进行配置。该板还包括七个继电器输出，由 A 型或 C 型输出组成。每个继电器内的触点的额定值为 120 VAC。低电平模拟I/O也可以使用板上的四个电位计进行缩放。
531X305NTBANG1
531X305NTBANG1

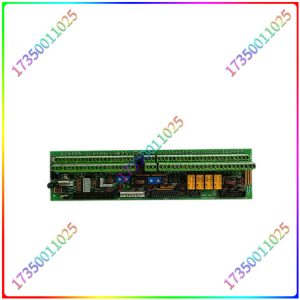

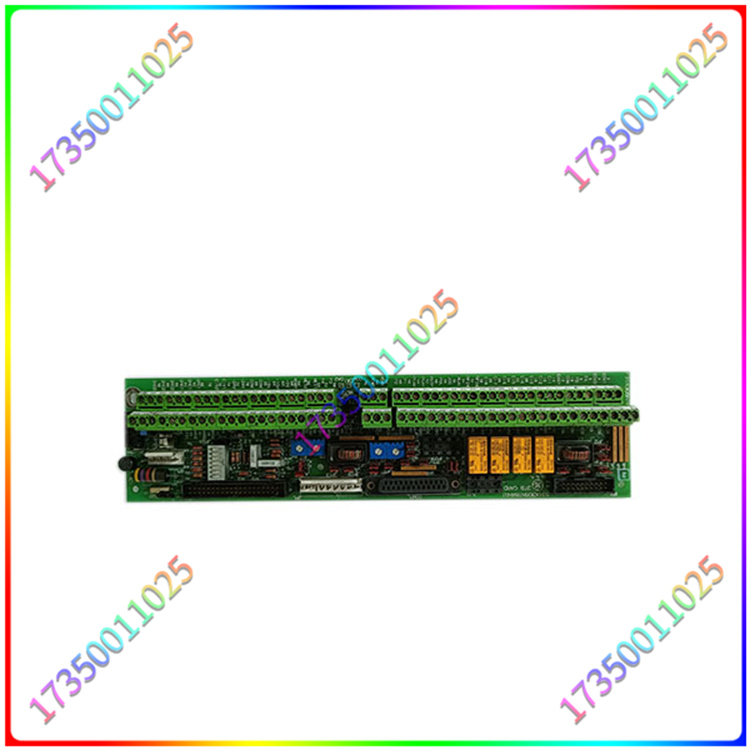

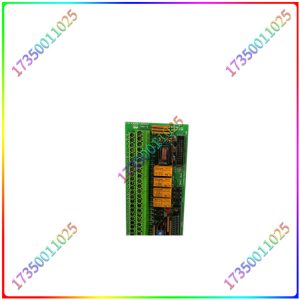

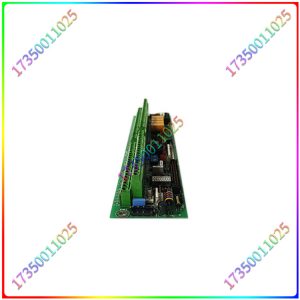

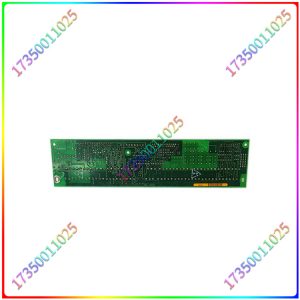

General Electric has manufactured the 531X305NTBANG1 card as an NTB/3TB terminal board. This terminal board was developed as a member of the 531X series replacement driver and exciter board. This board provides many interface system functions. The functions of this card include relays and serial outputs, analog I/O, power supply, and encoders.
When installing this NTB/3TB terminal board, it provides a series of functions for the drive. During installation, 531X305NTBANG1 can generate regulated and non regulated power supplies. The regulated power supply has a speed of 5 VDC and 15 VDC, while the rated voltage of non regulated power supply is 24 VDC or 125 VAC. Encoders with rated voltages of 5 V and 15 V can be configured using onboard jumpers. The board also includes seven relay outputs, consisting of A-type or C-type outputs. The rated value of the contacts inside each relay is 120 VAC. Low level analog I/O can also be scaled using the four potentiometers on the board.
531X305NTBANG1
531X305NTBANG1
