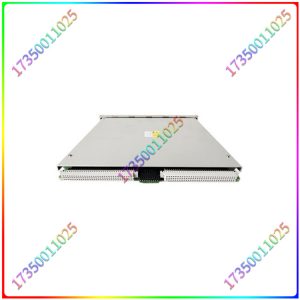

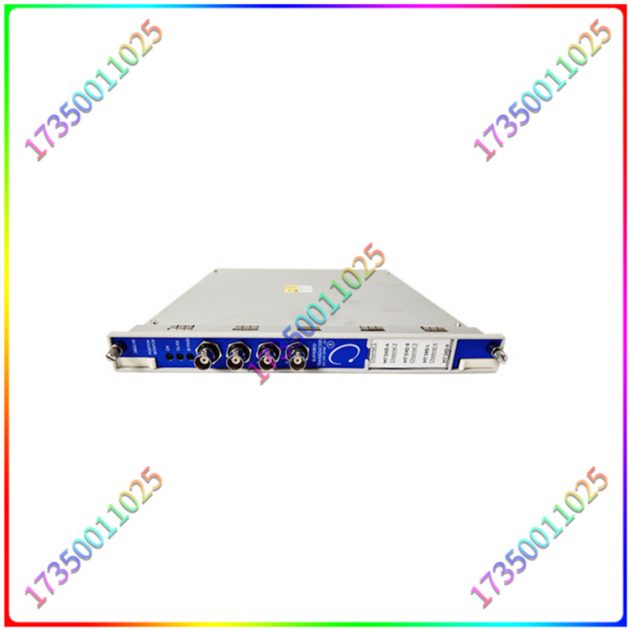

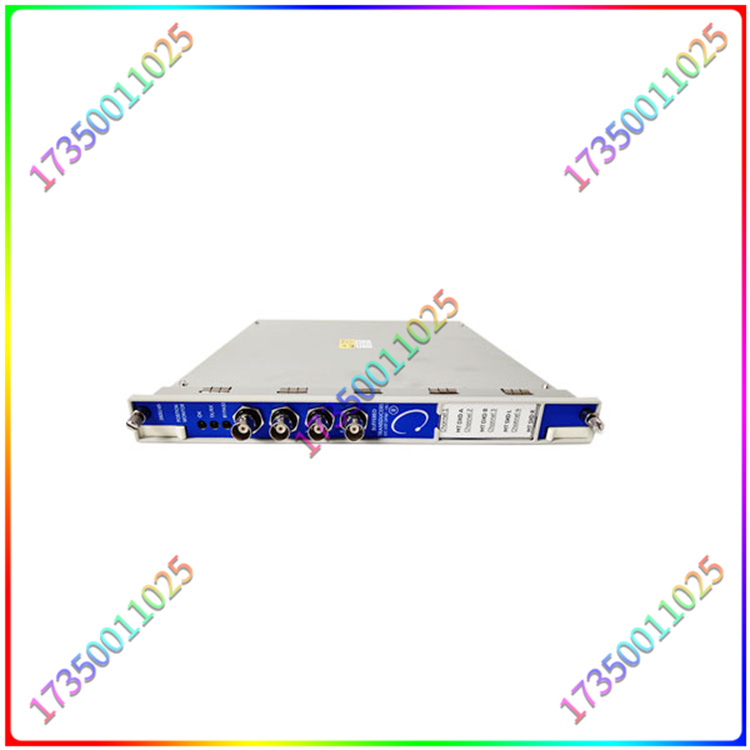

BENTLY 3500/45 位置监视器

3500/45位置监视器是一个4通道监视器，接受来自接近传感器，旋转位置传感器(RPT)，DC线性变量差动变压器(DC LVDT),交流线性可变差动变压器(交流LVDTs)和旋转电位计。注:要进行的测量类型和相关的传感器输入决定需要输入/输出(I/O)模块。参见表1以及图1和图2。它调节这些输入，并将调节后的信号与用户可编程报警进行比较。3500组态软件可以对每个进行编程3500/45的通道执行以下任何功能:轴向(推力)位置差异膨胀标准单斜坡差异膨胀非标准单斜坡差异膨胀双斜坡差异膨胀互补差异膨胀案例护扩展位置
注:监控通道成对编程，最多可执行其中两项功能一次。通道1和2可以执行-种功能，而通道3和4执行另-种功能(或同)功能。但是，只有通道和3和4可以执行案例扩展。3500/45监视器的主要目的是提供:1.通过持续比较监控参数来保护机器根据配置的报警设定值驱动报警。2.操作和维护的基本机器信息人事。根据配置,每个通道通常会调节其输入信号转换成称为“比例值” 的各种参数。警报设定点可以是为每个主动比例值和危险设定值配置的可以是针对任意两个有效比例值进行配置。

3500/45

3500/45

The 3500/45 position monitor is a 4-channel monitor that accepts signals from proximity sensors, rotating position sensors (RPT), DC linear variable differential transformers (DC LVDT), AC linear variable differential transformers (AC LVDTs), and rotary potentiometers. Note: The type of measurement to be performed and the associated sensor inputs determine the need for an input/output (I/O) module. Refer to Table 1 and Figures 1 and 2. It adjusts these inputs and compares the adjusted signal with a user programmable alarm. The 3500 configuration software can perform any of the following functions for each channel programmed with 3500/45: axial (thrust) position differential expansion standard single slope differential expansion non-standard single slope differential expansion double slope differential expansion complementary differential expansion case protection expansion position
Note: The monitoring channels can be programmed in pairs, and up to two functions can be executed once. Channels 1 and 2 can perform one function, while channels 3 and 4 can perform another function (or the same). However, only channels and 3 and 4 can perform case expansion. The main purpose of the 3500/45 monitor is to provide: 1. continuously compare monitoring parameters to protect the machine from driving alarms based on configured alarm settings. 2. Basic machine information and personnel for operation and maintenance. According to the configuration, each channel typically adjusts its input signal to convert into various parameters called “proportional values”. The alarm set point can be configured for each active proportional value and danger set point, and can be configured for any two valid proportional values.
