DS200DCFBG1BLC是通用电气为Mark V系列可选和更换板设计的电源板。该系列的成员与许多GE品牌的励磁器和驱动器交叉兼容。DC2000、AC2000、CB2000、ME2000 和 FC2000 的驱动器都可以接受此电源板。此卡为其安装的驱动器提供系统控制级电源，并为盘柜风扇提供电力。该板的源交流输入的额定电压范围为 38 至 115 VAC。伴随此VAC的频率范围为0至500 kHz，具体取决于输入电压的强度。
DS200DCFBG1BLC
DS200DCFBG1BLC
DS200DCFBG1BLC包含许多复杂的电路系统，旨在为大部分驱动器供电。该卡包括交流和直流监控电路、控制电平电源电路、电机励磁电源电路和驱动器电路。用户可以配置卡上的 <> 个跳线和 <> 个 DIP 开关，以满足任何外部要求。板卡状态通过板载指示灯传达给用户。卡中内置两个 LED 指示灯和一个霓虹灯指示灯，为用户提供重要的诊断和状态信息。 电路板的三个保险丝受到保护，确保中断或浪涌不会破坏电流。确保使用集成到电路板中的五个测试点定期监控电压电平。
必须遵循DS200DCFBG1BLC和驱动器提供的安装参数。这些准则将确保电路板及其安装的系统按预期运行。 有关接线和安装指南，请参阅系列手册以及设备数据表。 Mark V系列所有电路板的技术支持最初由制造商通用电气提供。
DS200DCFBG1BLC
DS200DCFBG1BLC

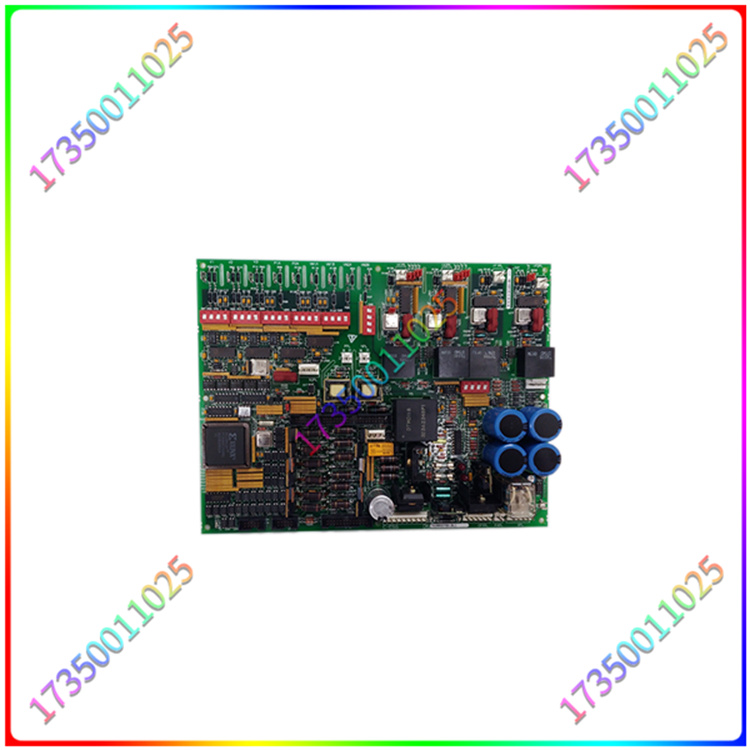

DS200DCFBG1BLC is a power board designed by General Electric for Mark V series optional and replaceable boards. The members of this series are cross compatible with many GE branded exciters and drives. The drives of DC2000, AC2000, CB2000, ME2000, and FC2000 can all accept this power board. This card provides system control level power for the drives it installs and power for the cabinet fans. The rated voltage range of the source AC input of this board is 38 to 115 VAC. The frequency range accompanying this VAC is 0 to 500 kHz, depending on the strength of the input voltage.
The DS200DCFBG1BLC contains many complex circuit systems designed to power most drivers. This card includes AC and DC monitoring circuits, control level power supply circuits, motor excitation power supply circuits, and driver circuits. Users can configure<>jumpers and<>DIP switches on the card to meet any external requirements. The status of the board is communicated to the user through the onboard indicator light. The card is equipped with two LED indicator lights and a neon indicator light, providing users with important diagnostic and status information. The three fuses on the circuit board are protected to ensure that interruptions or surges do not disrupt the current. Ensure regular monitoring of voltage levels using five test points integrated into the circuit board.
The installation parameters provided by DS200DCFBG1BLC and the driver must be followed. These guidelines will ensure that the circuit board and its installed system operate as expected. For wiring and installation guidelines, please refer to the series manual and equipment data sheet. The technical support for all circuit boards in the Mark V series was initially provided by the manufacturer General Electric
