GE继电器输出板DS200TCRAG1ACC装有30个插入式继电器。它还具有 4 个 34 针连接器和 4 个 12 针连接器。分配给 34 针连接器的 ID 是 JOR、JOS、JOT 和 JO。分配给 12 针连接器的 ID 是 JS3、JS4、JS5 和 JS6。由于 GE 继电器输出板DS200TCRAG1ACC上有多个连接器，因此必须遵循准则以确保您可以将电缆快速连接到更换板上的正确连接器。在开始更换之前，请确保您知道提供给驱动器的电流的紧急关闭设备的位置。并且，您必须了解如何操作关闭并验证其是否处于良好的工作状态。熟悉驱动器安装的人员将了解有关电源和紧急切断的详细信息。下一步是验证驱动器周围区域的地板是否干净，没有湿气或积水。使用清洁剂清洁地板上的油或油脂。您还应该拔下所有未接地的双脚电源线，因为有触电危险。
最佳做法是通知操作员和工作区中其他设备的管理人员已安排工作，以便他们可以计划工作中断并围绕它进行计划。在驱动器附近选择一个清晰、平坦且坚固的工作空间，并将包含电路板的盒子放在上面。
DS200TCRAG1ACC
DS200TCRAG1ACC

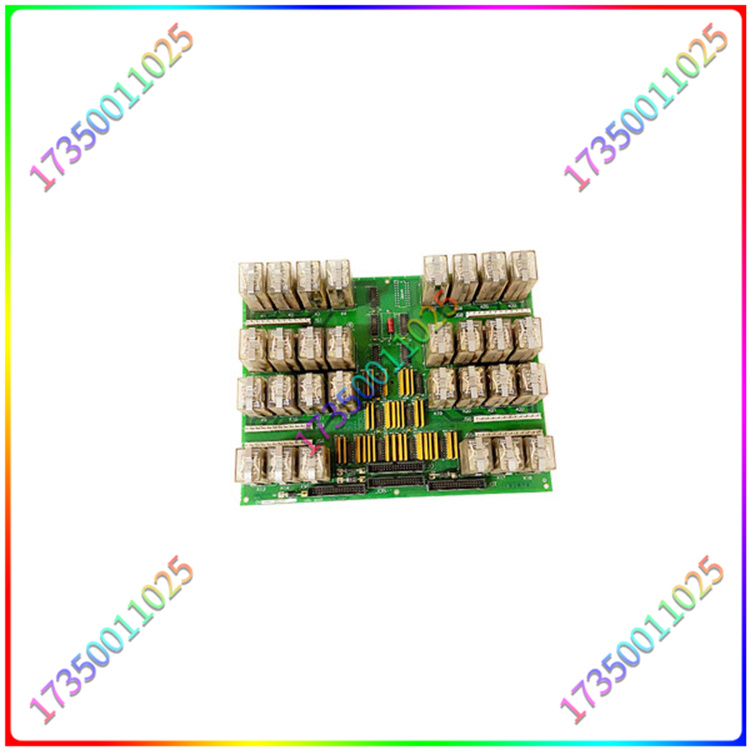

The GE relay output board DS200TCRAG1ACC is equipped with 30 plug-in relays. It also has four 34 pin connectors and four 12 pin connectors. The IDs assigned to the 34 pin connector are JOR, JOS, JOT, and JO. The IDs assigned to the 12 pin connector are JS3, JS4, JS5, and JS6. Due to multiple connectors on the GE relay output board DS200TCRAG1ACC, guidelines must be followed to ensure that you can quickly connect the cables to the correct connectors on the replacement board. Before starting the replacement, please ensure that you know the location of the emergency shutdown device for the current supplied to the drive. Moreover, you must understand how to operate the shutdown and verify that it is in good working condition. Personnel familiar with drive installation will learn detailed information about power supply and emergency shutdown. The next step is to verify that the floor around the drive is clean and free from moisture or accumulated water. Use a cleaning agent to clean the oil or grease on the floor. You should also unplug all ungrounded dual foot power cords as there is a risk of electric shock.
The best practice is to notify operators and managers of other equipment in the workspace that work has been scheduled, so that they can plan for work interruptions and plan around them. Select a clear, flat, and sturdy workspace near the drive, and place the box containing the circuit board on top.
DS200TCRAG1ACC
DS200TCRAG1ACC
