该IC693MDL730是GE Fanuc的90-30系列可编程逻辑控制器（PLC）产品系列中的正逻辑输出模块，现隶属于艾默生自动化。该模块在单组中具有八 （8） 个离散输出通道，提供 12-24 VDC 的输出电压范围，纹波为 + 20%，-15%。每个通道提供每点 2 安培的输出电流;2 摄氏度时每个保险丝 60 安培;4 摄氏度时每个保险丝 50 安培。IC693MDL730在现场侧和逻辑侧之间具有1500 V的隔离。输出通道的浪涌电流额定值为 9.4 安培，持续 10 ms;最大输出电压降为 12 伏;最大关断状态漏电流为1 mA，每次转换的典型开和关响应时间为2ms。该模块占用 90-30 底板的单个插槽，并与 90-30 系列五 （5） 或十 （10） 插槽底板的任何 I/O 插槽兼容。当所有输出通电时，其电流消耗为55 mA，来自背板上的5 VDC总线。该IC693MDL730兼容各种电气负载，特别是电机起动器、螺线管和指示器。必须将外部电源连接到模块以提供工作电源。状态 LED 指示灯安装在模块的前面板上，包括熔断保险丝指示灯、模块故障指示灯和八 （8） 个通道指示灯，分别分配给每个输出通道，描述每个输出点的运行状态。该模块配有拆卸端子板，以简化维护。

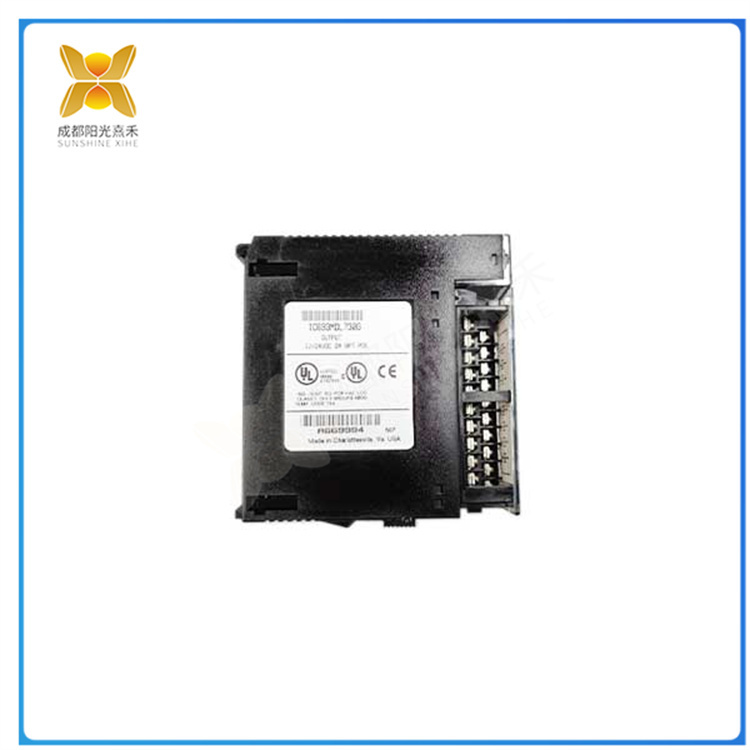

IC693MDL730
The IC693MDL730 is a positive logic output module in GE Fanuc’s 90-30 series of programmable logic controllers (PLCs) product series, and is now part of Emerson Automation. This module has eight (8) discrete output channels in a single group, providing an output voltage range of 12-24 VDC with ripple of+20% and -15%. Each channel provides an output current of 2 amperes per point; 60 amps per fuse at 2 degrees Celsius; 50 amps per fuse at 4 degrees Celsius. IC693MDL730 has 1500 V isolation between the field side and the logic side. The rated surge current of the output channel is 9.4 amperes for 10 ms; The maximum output voltage drop is 12 volts; The maximum leakage current in the off state is 1 mA, and the typical on and off response time for each conversion is 2ms. This module occupies a single slot on the 90-30 backplane and is compatible with any I/O slot on the 90-30 series five (5) or ten (10) slot backplane. When all outputs are powered on, their current consumption is 55 mA, coming from the 5 VDC bus on the backplane. The IC693MDL730 is compatible with various electrical loads, especially motor starters, solenoids, and indicators. External power must be connected to the module to provide working power. The status LED indicator light is installed on the front panel of the module, including a blown fuse indicator light, module fault indicator light, and eight (8) channel indicator lights, which are assigned to each output channel and describe the operating status of each output point. This module is equipped with a detachable terminal board to simplify maintenance.
