GE Fanuc IC693PWR322是 24/48 VDC 标准电源。 标准装置不包括电池，设计用于使用 12V DC 或 48V DC 的标称输入，并具有 30 瓦输出。该装置可以通过任何IC693 PLC底板安装在标准电源插槽中。虽然它能够在输入电压低至 18VDC 的情况下保持所有输出（在规格范围内），但它不会在初始输入电压低于 21 VDC 时启动。该电源提供三个独立的输出。这些是+5VDC，+24VDC继电器输出，用于为任何IC693继电器输出模块上的电路供电，以及用于输入模块的+24VDC隔离电源。
使用此电源时，用户可以计算特定于其应用的电源要求。为此，首先需要通过检查IC693 PLC安装和硬件手册中列出的规格来确定总输出负载。这将显示各个模块的规格。总输出负载应乘以1.5以确定输入功率值。要计算输入电流要求，请将输入功率除以工作电源电压。 由于工作源电压可能会变化，因此应使用最低测量或估计的输入电压来确定最大输入电流。进行此计算的运营商还应考虑到启动浪涌电流要求，并允许10-20%的变化余量。

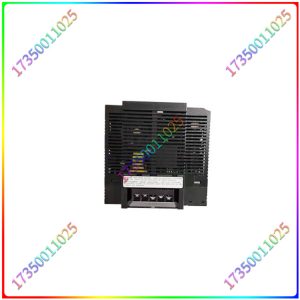

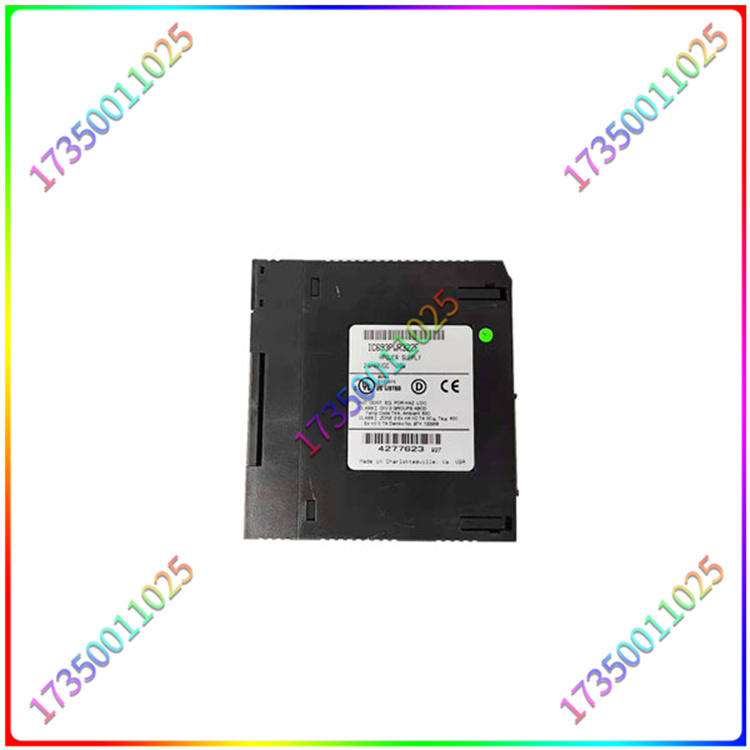

IC693PWR322F
IC693PWR322F
GE Fanuc IC693PWR322 is a 24/48 VDC standard power supply. The standard device does not include batteries, is designed to use a nominal input of 12V DC or 48V DC, and has a 30 watt output. This device can be installed in a standard power slot through any IC693 PLC backplane. Although it can maintain all outputs (within specifications) with an input voltage as low as 18VDC, it will not start when the initial input voltage is below 21 VDC. This power supply provides three independent outputs. These are the+5VDC,+24VDC relay outputs used to power circuits on any IC693 relay output module, as well as the+24VDC isolated power supply used for input modules.
When using this power supply, users can calculate power requirements specific to their application. To achieve this, it is first necessary to determine the total output load by checking the specifications listed in the IC693 PLC installation and hardware manual. This will display the specifications of each module. The total output load should be multiplied by 1.5 to determine the input power value. To calculate the input current requirement, divide the input power by the working power supply voltage. Due to the possibility of variations in the working source voltage, the lowest measured or estimated input voltage should be used to determine the maximum input current. The operator conducting this calculation should also consider the requirements for starting surge current and allow for a variation margin of 10-20%.
IC693PWR322F
IC693PWR322F
