通用电气或通用电气创建了IS200TREGH1B作为旅行紧急终止板。这是一种为Mark VI系列制造的印刷电路板或PCB。Mark VI是通用电气Mark系列的最新系列。这些系列是为蒸汽和燃气轮机的运行和自动化而设计的。

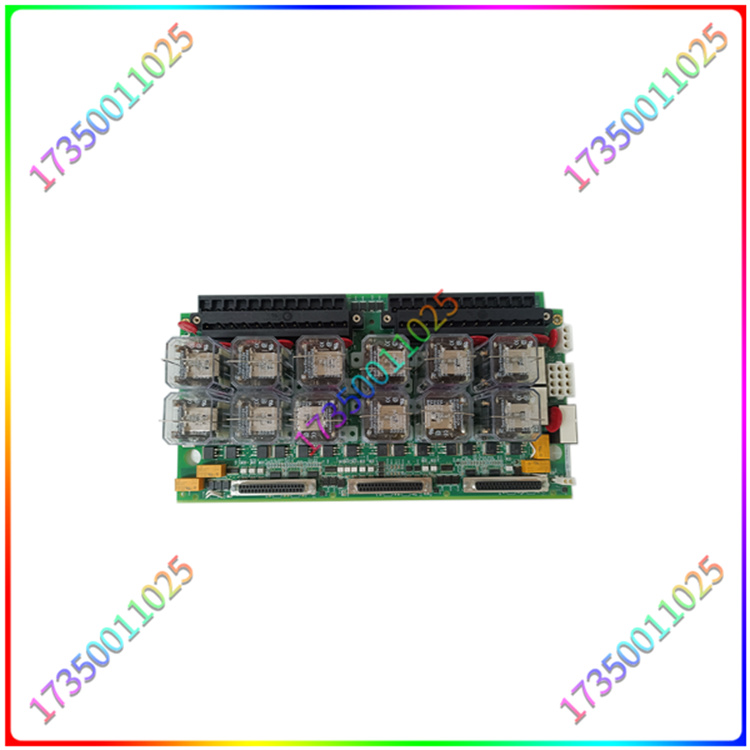

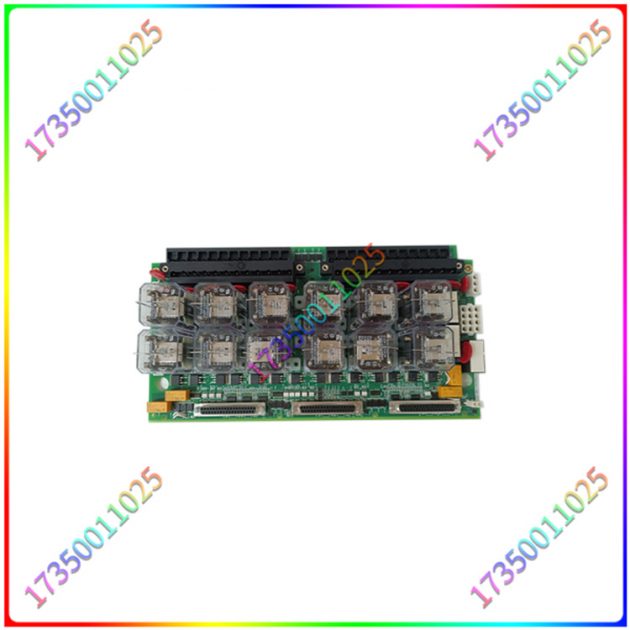

该设备上最引人注目的组件是一系列方形的变压器。这些变压器由透明塑料和银线覆盖。这些涵盖了有关组件的功能信息，例如部件号和电压。这些变压器中有十二 （12） 个位于IS200TREGH1B上，每条垂直线每条六 （6） 个变压器。两 （2） 个大的黑色接线端子占据IS200TREGH1B左边缘的空间。接线端子共包含四十八 （48） 个由银金属制成的端子。这些端子在两 （2） 个端子块之间平均分配，每个端子块分配二十四 （24） 个。IS200TREGH1B包含许多称为金属氧化物压敏电阻或MOV的组件。这些 MOV 是圆形和纯红色的。它们被放置在IS200TREGH1B的边缘。三 （3） 个白色跳线端口已放置在IS200TREGH1B的顶部边缘。这些端口之间共有十七 （17） 个端口。左侧的连接器具有三个端口，标识为 JH1。中间的连接器包含十二个标识为 J2 的端口，右侧的最后一个连接器具有两 （2） 个标识为 J1 的端口。
IS200TREGH1B
IS200TREGH1B
General Electric or General Electric has created IS200TREGH1B as a travel emergency termination board. This is a printed circuit board or PCB manufactured for the Mark VI series. The Mark VI is the latest series in the General Electric Mark series. These series are designed for the operation and automation of steam and gas turbines.
The most eye-catching component on this device is a series of square transformers. These transformers are covered with transparent plastic and silver wire. These cover functional information about the components, such as part numbers and voltages. Twelve (12) of these transformers are located on IS200TREGH1B, with six (6) transformers per vertical line. Two (2) large black wiring terminals occupy the space on the left edge of IS200TREGH1B. The terminal blocks consist of forty-eight (48) terminals made of silver metal. These terminals are evenly distributed between two (2) terminal blocks, with each terminal block allocated twenty-four (24). IS200TREGH1B contains many components called metal oxide varistors or MOVs. These MOVs are circular and pure red. They are placed on the edge of IS200TREGH1B. Three (3) white jumper ports have been placed on the top edge of IS200TREGH1B. There are a total of seventeen (17) ports between these ports. The connector on the left has three ports labeled JH1. The middle connector contains twelve ports labeled J2, and the last connector on the right has two (2) ports labeled J1.
IS200TREGH1B
IS200TREGH1B
专业销售世界各大电气品牌产品产品海外直接采购，正品库存，价格优惠售后保修，型号齐全，一样的产品，不一样的价格与服务。大量供应原装进口DCS系统配件，PLC系统配件。主营:ABB、GE发那科、Bentl本特利、Triconex英维思、Woodward伍德沃德、Foxboro福克斯波罗、Westinghouse西屋/Emerson艾默生、Reliance瑞恩、SchneiderModicon施耐德莫迪康、A-B、HIMA黑马、Motorola摩托罗拉、Kollmorgen科尔摩根Bosch/Rexroth/博世力上乐，NI,YOKOGAWA横河，等各大品牌的DCS系统配件，机器人系统配件，大型伺服系统停产备件。
IS200TREGH1B
