IS220PAICH2A是通电气公开发的模拟/O模块。它是Mark Vle Speedtronic控制系统的一部分。这个I/O包直接连接到端子板上。I/O组件通过-个DC 37针连接器连接到单I端子板。如果只安装了一个I/O包，TMR功能端子板有三个DC-37针连接器，可以在单工模式下使用。所有这些连接都由I/O包直接支持。
功能描述.
●模拟I/O组件(PAIC)是一 个电气接口, 将-个或两个I/O以太网连接到模拟输入端子板。PAIC包括- 个BPPx处理器板和一个专用于 模拟/O功能的采集板。
●该模块有十个模拟输入。前八个输入可以设置为5 V、10 V或4-20 mA电流环路输入。最后两个输入可以设置为1 mA或4-20 mA电流输入。
●电流回路输入的负载终端电阻位于端子板上，PAIC检测这些电阻上的电压。PAICH2有两个电流环路输出,范围为0至20 mA。它还包括额外的硬件，仅允许第-个输出端有0-200 mA电流。
●1/O包通过双RJ-45以太网连接器接收和发送数据到控制器， 并由-个三针连接器供电。现场设备通过直接连接到相关端子板的DC 37针连接器进行通信。LED指示灯提供视觉诊断。
IS220PAICH2A
IS220PAICH2A
IS220PAICH2A is a simulation/O module developed by Tongdian Corporation. It is part of the Mark Vle Speedtronic control system. This I/O package is directly connected to the terminal board. The I/O component is connected to a single I terminal board through a DC 37 pin connector. If only one I/O package is installed, the TMR function terminal board has three DC-37-pin connectors that can be used in simplex mode. All of these connections are directly supported by the I/O package.
Function description
Analog I/O component (PAIC) is an electrical interface that connects one or two I/O Ethernet networks to the analog input terminal board. The PAIC includes a BPPx processor board and a collection board dedicated to analog/O functions.
This module has ten analog inputs. The first eight inputs can be set as 5 V, 10 V, or 4-20 mA current loop inputs. The last two inputs can be set to 1 mA or 4-20 mA current input.
The load terminal resistors of the current circuit input are located on the terminal board, and the PAIC detects the voltage on these resistors. PAICH2 has two current loop outputs, ranging from 0 to 20 mA. It also includes additional hardware, allowing only the first output terminal to have a current of 0-200 mA.

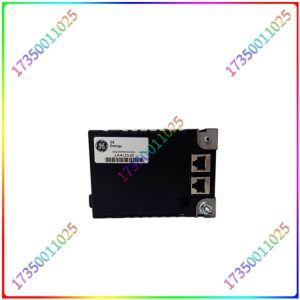

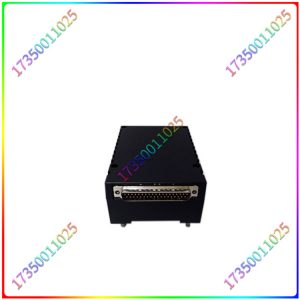

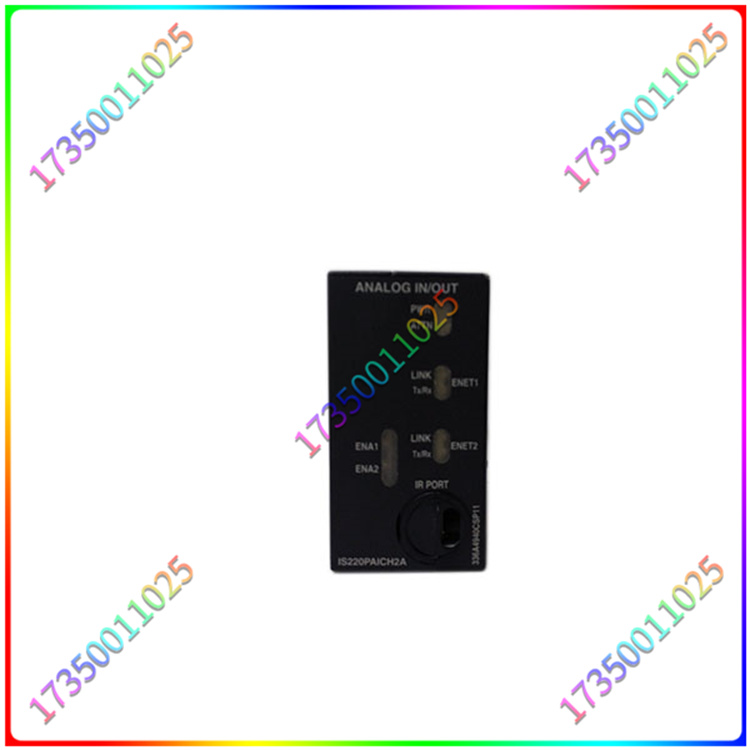

The 1/O packet receives and sends data to the controller through dual RJ-45 Ethernet connectors, and is powered by a three pin connector. The on-site equipment communicates through a DC 37 pin connector directly connected to the relevant terminal board. LED indicators provide visual diagnosis.
IS220PAICH2A
IS220PAICH2A
