IS220PDIOH1A是用于Mark VIe Speedtronic系统的I/O包模块。Mark VIe是通用电气以Speedtronic名称发布的后期系统之一。自 1960 年代后期通用电气发布 Mark I 以来，Speedtronic 系统一直用于工业涡轮机控制。
IS220PDIOH1A有两个以太网端口和自己的本地处理器。它可以与端子板IS200TDBSH2A和IS200TDBTH2A结合使用。这些 I/O 组/端子板组合已获准用于危险场所。
IS220PDIOH1A
IS220PDIOH1A的最低额定电压为 27.4 VDC。其标称额定值为 28.0 VDC。该装置及其相关的端子板具有必须遵循的特定现场接线连接说明，包括电线尺寸和螺钉扭矩。此信息可以在与该装置相关的GE手册中找到，例如GEH-6725。
IS220PDIOH1A的前面板包括用于两个以太网端口的 LED 指示灯、设备电源以及“attn”LED。其他 LED 与继电器连接有关。
IS220PDIOH1A

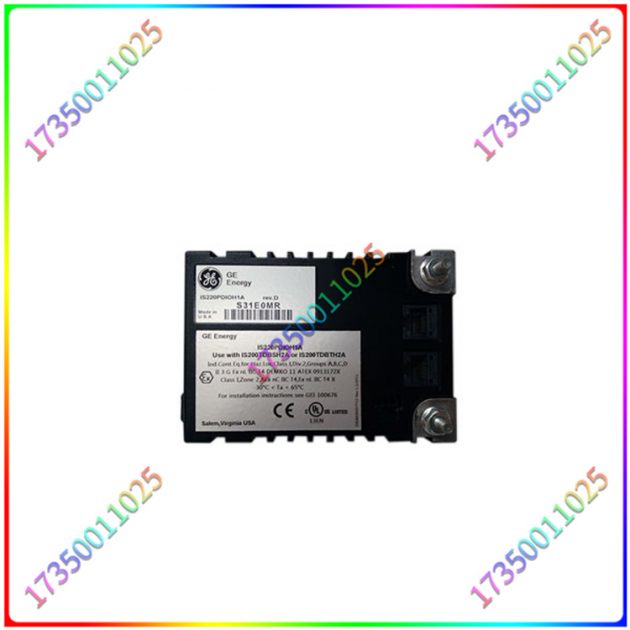

IS220PDIOH1A is an I/O package module used in the Mark VIe Speedtronic system. Mark VIe is one of the later systems released by General Electric under the name Speedtronic. Since the release of the Mark I by General Electric in the late 1960s, the Speedtronic system has been used for industrial turbine control.
IS220PDIOH1A has two Ethernet ports and its own local processor. It can be used in combination with terminal boards IS200TDBSH2A and IS200TDBTH2A. These I/O groups/terminal board combinations have been approved for use in hazardous locations.
IS220PDIOH1A
The minimum rated voltage of IS220PDIOH1A is 27.4 VDC. Its nominal rating is 28.0 VDC. The device and its associated terminal blocks have specific on-site wiring connection instructions that must be followed, including wire size and screw torque. This information can be found in the GE manual related to the device, such as GEH-6725.
The front panel of IS220PDIOH1A includes LED indicators for two Ethernet ports, device power, and “ATTN” LED. Other LEDs are related to relay connections.
IS220PDIOH1A
