IS220PSVOH1A用作伺服控制包。该组件由GE为其Mark VI或Mark VIe系统制造。这两个系统都用于控制蒸汽和燃气轮机系统。

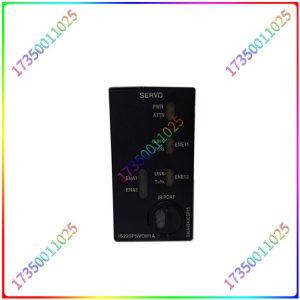

IS220PSVOH1A提供一个或两个 I/O 以太网网络与 TSVO 伺服终端板之间的电气接口。IS220PSVOH1A使用 WSVO 伺服驱动器模块来处理两个伺服阀位置环。PSVO有一个带有多个LED指示灯的前面板。其中包括四个指示两个以太网网络（ENet1/Enet2）状态的LED，以及一个电源和Attn LED，以及另外两个标记为ENA1/2的LED。正面还有一个红外端口，此包中未使用。

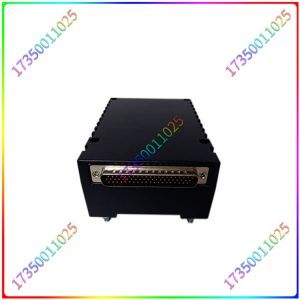

IS220PSVOH1A
安装后，IS220PSVOH1A配置了控制系统工具箱应用程序。该套件包括一个带输入电源连接器的处理器板、本地电源和一个用于温度监控的内部传感器。该板还具有闪存和板载 RAM。该板连接到采集板。
更换IS220PSVOH1A时可以自动重新配置。此选项通过组件编辑器通过 ToolboxST 应用程序启用/禁用。如果需要，组件编辑器还允许操作员手动重新配置模块。更换端子板时，必须手动重新配置 I/O 包。

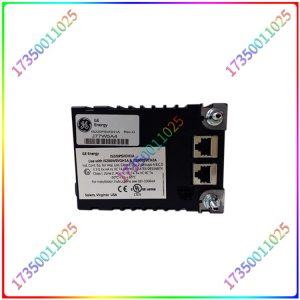

IS220PSVOH1A
IS220PSVOH1A is used as a servo control package. This component is manufactured by GE for its Mark VI or Mark VIe systems. Both systems are used to control steam and gas turbine systems.
IS220PSVOH1A provides an electrical interface between one or two I/O Ethernet networks and the TSVO servo terminal board. IS220PSVOH1A uses the WSVO servo driver module to handle two servo valve position rings. PSVO has a front panel with multiple LED indicators. This includes four LEDs indicating the status of two Ethernet networks (ENet1/Enet2), as well as one power and Attn LED, and two other LEDs labeled ENA1/2. There is also an infrared port on the front, which is not used in this package. After installation, IS220PSVOH1A is configured with the control system toolbox application. This kit includes a processor board with an input power connector, a local power supply, and an internal sensor for temperature monitoring. The board also has flash memory and onboard RAM. This board is connected to the acquisition board.
When replacing IS220PSVOH1A, it can be automatically reconfigured. This option is enabled/disabled through the ToolboxST application through the component editor. If necessary, the component editor also allows the operator to manually reconfigure the module. When replacing the terminal board, the I/O package must be manually reconfigured.
IS220PSVOH1A
