SMART Embedded Computing的 MVME7100 配备 MPC864xD 片上系统处理器，为使用前一代 VME（尤其是 MPC74xx 处理器）的 VMEbus 客户提供扩展路径。片上系统实施具有其它架构少有的功率/ 热、可靠性以及使用寿命优势。SMART Embedded Computing的 MVME7100 单板计算机 (SBC) 助力工业、医疗以及国防/航天设备的 OEM 制造商实现具有竞争优势的性能和特性，并且保护 VMEbus 和相关技术方面的基础性投资。客户可保留其 VMEbus 基础架构（机箱、背板以及其它 VMEbus 和 PMC 板），同时提高产品性能并延长生命周期。此外，SMART Embedded Computing计算产品的生命周期得以延长，有助于减少因产品频繁变更而导致对开发和支持重复投入。高速处理器和 2eSST VMEbus 接口相结合，明显提高了性能。
MVME7100
通过 USB 接口，可轻松集成新增的成本效益型外围设备。宽工作温区（-40°C 至 +71°C）版本支持更宽的工作和存储温度范围，而且增强了抗冲击性。此性能使基板能够在恶劣环境下运行，同时保持结构和操作完整性。特性：高达 1.3 GHz 的片上系统NXP® MPC864xD，配备双 PowerPC® e600 处理器内核、双集成内存控。制器、DMA 引擎、PCI Express 接口、以太网和本地 I/O。工作温区宽（-40°C 至 +71°C），提供加固型板版本。四个千兆以太网端口。高达 2GB 的 DDR2 ECC 内存、128MB NOR 闪存以及 2GB、4GB 或 8GB NAND 闪存。USB 2.0 控制器，可集成成本效益型外围设备（仅限商业级温度）。2eSST VMEbus 协议，经过 VMEbus 时传输速率达 320MB/s。VxWorks、LynxOS 及 Linux 适用的板级支持包。MVME7216E 直连式后插卡 (RTM)，可通过 VMEbus 机箱后部进行 I/O 路由。
MVME7100

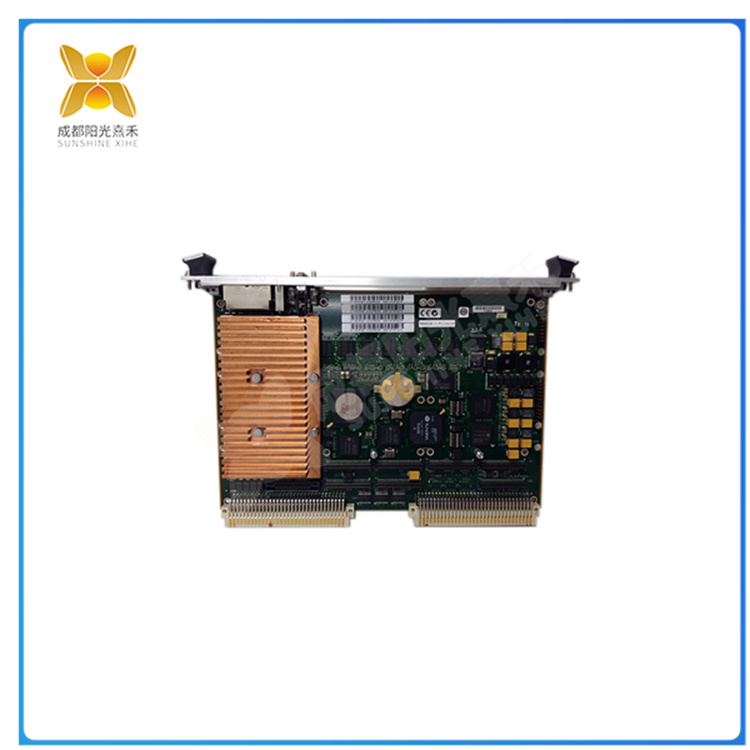

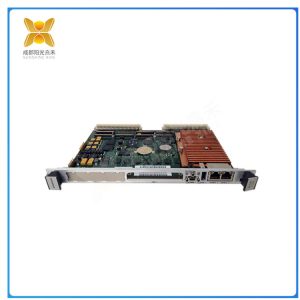

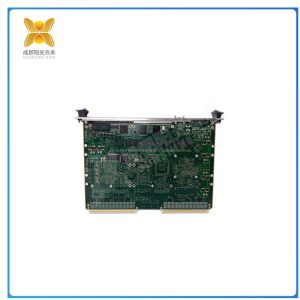

SMART Embedded Computing’s MVME7100 is equipped with an MPC864xD on-chip system processor, providing an extension path for VMEbus customers using the previous generation VME (especially the MPC74xx processor). On chip system implementation has power/thermal, reliability, and service life advantages that are rare in other architectures. SMART Embedded Computing’s MVME7100 Single Board Computer (SBC) helps OEM manufacturers of industrial, medical, and defense/aerospace equipment achieve competitive performance and features, while protecting fundamental investments in VMEbus and related technologies. Customers can retain their VMEbus infrastructure (chassis, backplane, and other VMEbus and PMC boards) while improving product performance and extending the lifecycle. In addition, the lifecycle of SMART Embedded Computing products has been extended, which helps to reduce repeated investment in development and support due to frequent product changes. The combination of high-speed processors and 2eSST VMEbus interface significantly improves performance.
MVME7100
Through the USB interface, new cost-effective peripheral devices can be easily integrated. The wide working temperature range (-40 ° C to+71 ° C) version supports a wider range of working and storage temperatures, and enhances impact resistance. This performance enables the substrate to operate in harsh environments while maintaining structural and operational integrity. Feature: Up to 1.3 GHz on-chip system NXP ® MPC864xD with dual PowerPC ® E600 processor core, dual integrated memory control. Controller, DMA engine, PCI Express interface, Ethernet, and local I/O. The working temperature range is wide (-40 ° C to+71 ° C), and a reinforced plate version is provided. Four Gigabit Ethernet ports. Up to 2GB of DDR2 ECC memory, 128MB NOR flash memory, and 2GB, 4GB, or 8GB NAND flash memory. USB 2.0 controller that can integrate cost-effective peripheral devices (commercial grade temperature only). The 2eSST VMEbus protocol has a transmission rate of 320MB/s when passing through VMEbus. Board level support packages for VxWorks, LynxOS, and Linux. The MVME7216E Direct Connect Rear Insert Card (RTM) can be used for I/O routing through the rear of the VMEbus chassis.
MVME7100
