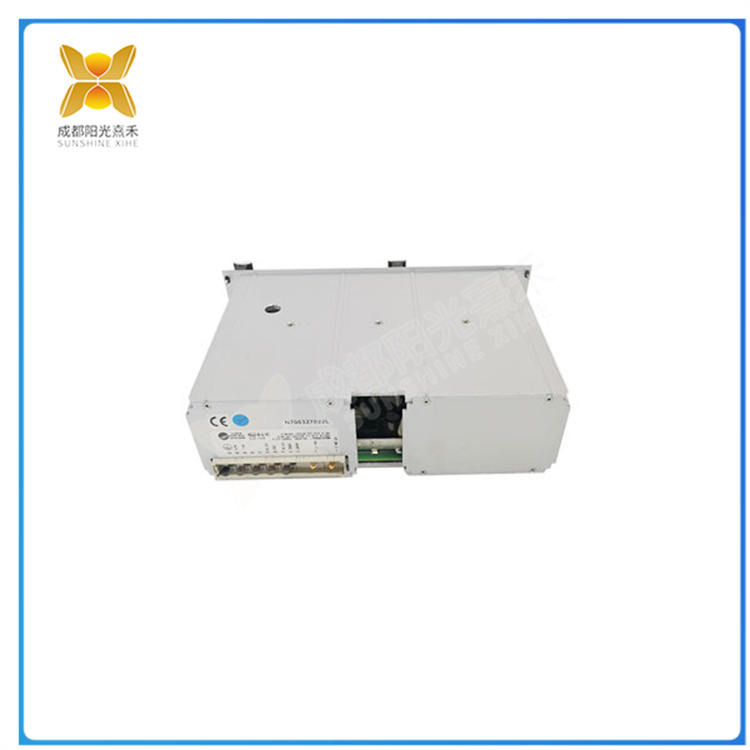

ALSTOM N70032702L 脉冲输出模块

In stock

品牌: ALSTOM

型号: N70032702L

名称: 脉冲输出模块

质保:一年

  • 电话/Phone:17350011025 (微信同号)
  • 邮箱/Email:1713556114@qq.com
  • QQ:1713556114

ALSTOM N70032702L脉冲输出模块用于接电机驱动器,CW/CCW是双脉冲工作方式,两根线都输出脉冲信号,CW为正转脉冲信号,CCW为反转脉冲信号,通常都是差分方式输出,两信号相位差90度,根据相位超前或滞后来决定旋转方向。脉冲数决定电机转动角度。而方向/脉冲信号是单脉冲的,脉冲信号发出脉冲决定电机转动角度,方向信号就是电平信号,比如,想正转加高电平,想反转加低电平。在电机朝一个方向转动时,此信号保持原有电平不需要改变。

N70032702L

ALSTOM系列N70032702L应用逻辑数控PLC系统控制器备件为了区分PLC和DCS,有五个关键因素需要考虑:它们是: 响应时间:PLC速度快,这使PLC成为实时操作(如安全关闭或点火控制)的理想控制器。DCS处理数据需要的时间,这使得它在响应时间至关重要时不是正确的解决方案。 可扩展性:PLC可以处理几千个I/O点,而DCS可以处理数千个I/O点并适应新设备、过程增强和数据集成。当需要的过程控制,并且包含分布在具有数千个I/O点的广阔地理区域的大型设施时,DCS可能。

N70032702L

ALSTOM series N70032702L application logic CNC PLC system controller spare parts In order to distinguish between PLC and DCS, there are five key factors to consider: response time: PLC speed is fast, making PLC an ideal controller for real-time operations such as safety shutdown or ignition control. The time required for DCS to process data makes it an incorrect solution when response time is crucial. Scalability: PLC can handle thousands of I/O points, while DCS can handle thousands of I/O points and adapt to new devices, process enhancements, and data integration. When process control is required and includes large facilities distributed in a vast geographical area with thousands of I/O points, DCS may be used.

N70032702L

The ALSTOM N70032702L pulse output module is used to connect to the motor driver. CW/CCW operates in a dual pulse mode, with both lines outputting pulse signals. CW represents a forward pulse signal and CCW represents a reverse pulse signal, which are usually output in differential mode. The phase difference between the two signals is 90 degrees, and the rotation direction is determined based on the phase exceeding or lagging. The number of pulses determines the rotation angle of the motor. The direction/pulse signal is a single pulse, and the pulse signal sends out pulses to determine the motor rotation angle. The direction signal is a level signal, such as adding a high level to forward rotation or adding a low level to reverse rotation. When the motor rotates in one direction, this signal remains at its original level and does not need to be changed.
