AC800F控制器主板ABB PM802F/ABB PM803F有6个槽位及1个电源槽位，其中有2个槽位采用快速DMA技术与CPU直接进行高速数据通信，这2个槽位通过插入以太网模件实现控制层基于标准 TCP／IP协议以太网的信息传递，剩余4个槽位F1…F4采用中断方式与CPU及主存储器进行数据交换，每个模件都可以产生自己的中断源，强大的中断控制器及先进的多任务操作系统可以快速响应来自这4个通信模件的中断信息及迅速与之进行数据交换，同时通过优先级的控制可以实时接收通信模件的错误报告信息CPU板数据总线的带宽为100MB／s，保障来自各种通信模件的大信息量数据快速传递到CPU单元进行处理。为了保证数据最大程度的准确率，AC800F CPU单元的主存储器芯片具有错误检测及修改能力，可以检查32位数据字的2位错误及修改1位错误PM803主板提高主存储器的存储容量为16MB，实现在AC800F控制器上执行大容量的控制程序，但相应的程序保持设备要更新。

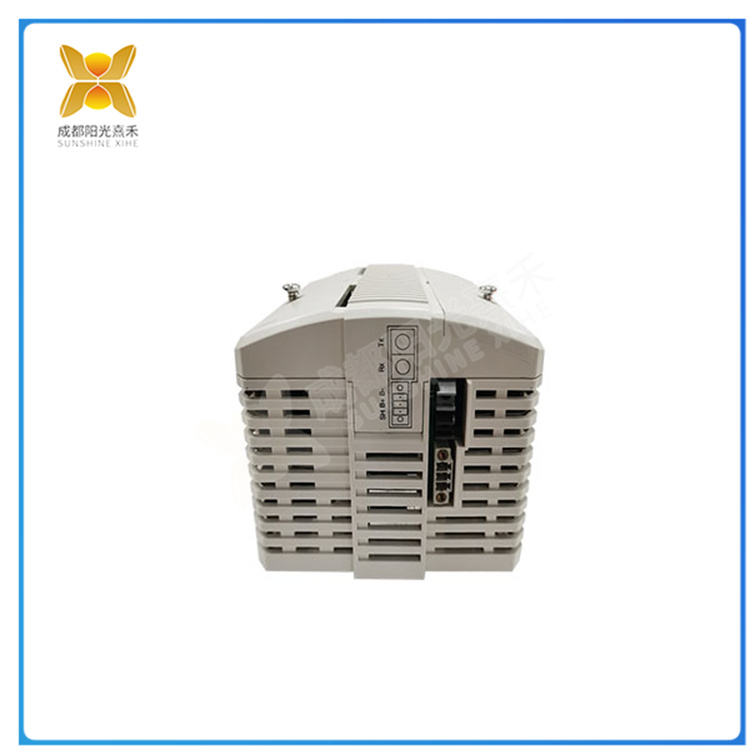

PM860
The AC800F controller motherboard ABB PM802F/ABB PM803F has 6 slots and 1 power slot. Among them, 2 slots use fast DMA technology to directly communicate with the CPU for high-speed data. These 2 slots achieve control layer information transmission based on standard TCP/IP protocol Ethernet by inserting Ethernet modules. The remaining 4 slots F1… F4 use interrupt mode to exchange data with the CPU and main memory, and each module can generate its own interrupt source, The powerful interrupt controller and advanced multitasking operating system can quickly respond to interrupt information from these four communication modules and quickly exchange data with them. At the same time, through priority control, it can receive real-time error report information from communication modules. The bandwidth of the CPU board data bus is 100MB/s, ensuring that large amounts of information from various communication modules are quickly transmitted to the CPU unit for processing. In order to ensure the maximum accuracy of data, the main memory chip of the AC800F CPU unit has error detection and modification capabilities. It can check for 2-bit errors in 32-bit data words and modify 1-bit errors. The PM803 motherboard increases the storage capacity of the main memory to 16MB, enabling the execution of large control programs on the AC800F controller, but the corresponding programs keep the device updated.
PM860
PLC内的I/O模板，除一般的DI/DO、AD/DA模板外，还发展了一系列特殊功能的I/O模板，这为PLC用于各行各业打开了出路，如用于条形码识别的ASCII/BASIC模板，用于反馈控制的PID模板，用于运行控制、机械加工的高速计数模板、单轴位置控制模板、双轴位置控制模板、凸轮定位器模板、射频识别接口模板等，这在以后还会有很大发展。另外在输入、输出的相关元件、强干扰场合的输入、输出电隔离、地隔离等方面也会更加完善。
PM860
