系统功能由现场测控单元和监控中心两大部分组成。现场测控单元 包括无线通讯及现场的测控以及相应的供电、防浪涌等设施，实现功能包括：现场各种直流信号的采集。现场各种开关量状态的采集。现场各种开关量的控制。现场各种脉冲量的累计。无线GRPS/CDMA通讯。具备IP65防护。 能稳定工作在零下20到零上70度。采用标准总线和协议，具备可扩展性。除了远方通信接口外，还具有本地调试接口，方便现场故障诊断。具备完整的配套的测试工具，利于工程师进行系统调测。现场防水测控箱EMC达到IEC标准的三级。

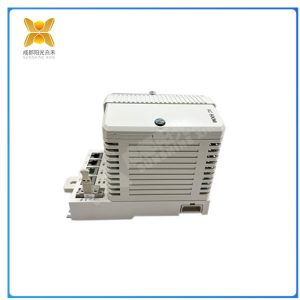

PM866AK01
实现整个管网系统各监控点状态数据的采集和处理，通过系统中集成的强大软逻辑（Softlogic）功能可对所有数据执行高级算法处理，将结果值发回现场或通过内嵌的SQL语言、OPC、ODBC等标准接口发送给第三方系统或数据库，以实现数据的充分共享，交叉访问以及应用的高度独立性。实现的系统功能如下：支持多线程完全并发通讯功能。数据采集和算法处理功能。内嵌符合IEC61131-3国际标准的全部五种编程语言（ST, SFC, FBD, IL, LD）的Softlogic功能，支持用户编写复杂的逻辑算法实现功能控制。细腻的画面监控和逼真的动画显示功能。数据的实时查询、实时报警、以及趋势图的显示。通讯自诊断功能。设备自动报警记录功能。生成报表及打印功能。

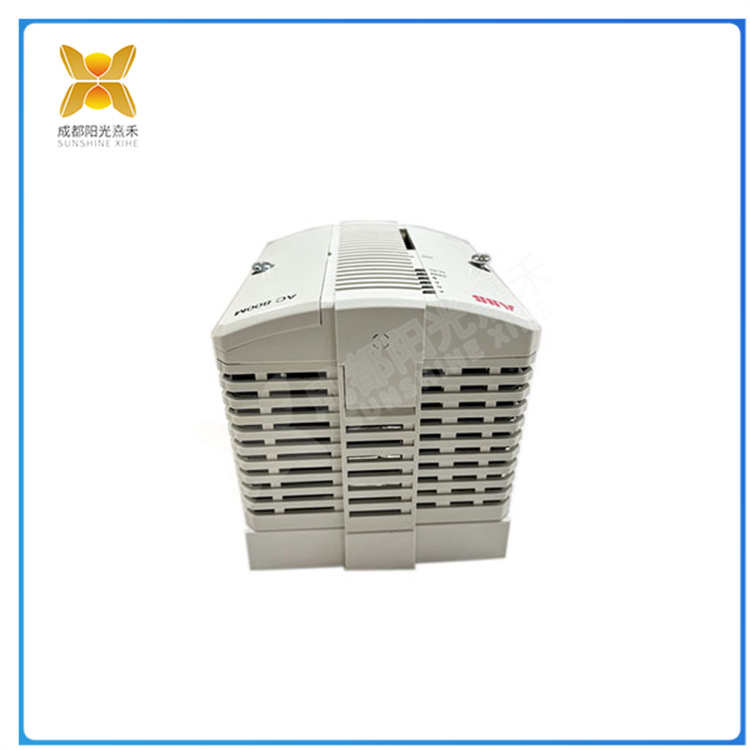

PM866AK01
The system function consists of two main parts: on-site measurement and control unit and monitoring center. The on-site measurement and control unit includes wireless communication, on-site measurement and control, as well as corresponding power supply, surge prevention and other facilities. Its functions include: collecting various DC signals on site. Collection of various switch status on site. Control of various switching values on site. The accumulation of various pulse quantities on site. Wireless GRPS/CDMA communication. Equipped with IP65 protection. Capable of stable operation at -20 to -70 degrees Celsius. Adopting standard buses and protocols, with scalability. In addition to remote communication interfaces, there is also a local debugging interface for convenient on-site fault diagnosis. Equipped with complete supporting testing tools, it is convenient for engineers to conduct system debugging. The on-site waterproof measurement and control box EMC meets the third level of IEC standards.
PM866AK01
Realize the collection and processing of status data from various monitoring points in the entire pipeline system. Through the powerful Softlogic function integrated in the system, advanced algorithm processing can be performed on all data, and the result values can be sent back to the site or sent to third-party systems or databases through embedded SQL language, OPC, ODBC and other standard interfaces, in order to achieve full data sharing, cross access, and high application independence. The system functions implemented are as follows: supporting full concurrent communication with multiple threads. Data collection and algorithm processing functions. Embedded Softlogic functions for all five programming languages (ST, SFC, FBD, IL, LD) that comply with the IEC61131-3 international standard, supporting users to write complex logic algorithms for functional control. Delicate screen monitoring and realistic animation display function. Real time query of data, real-time alarm, and display of trend graphs. Communication self diagnosis function. Equipment automatic alarm recording function. Generate reports and print functions.
