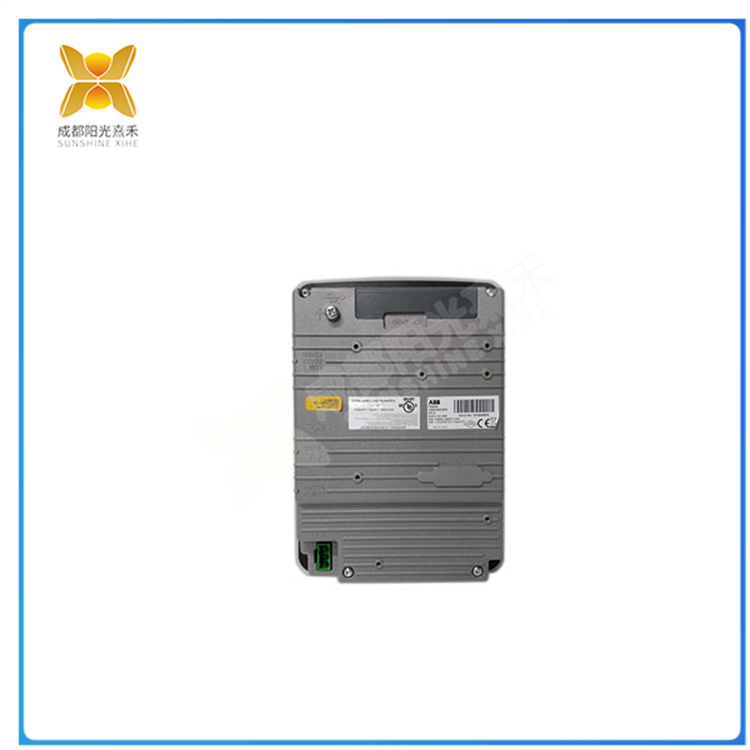

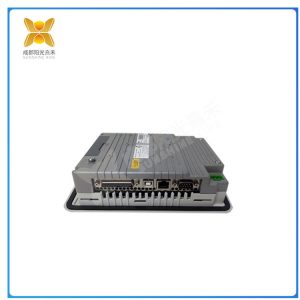

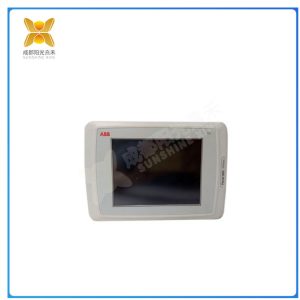

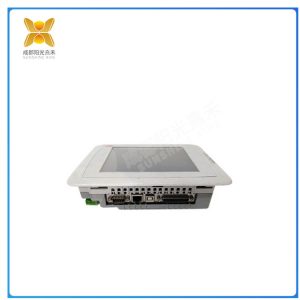

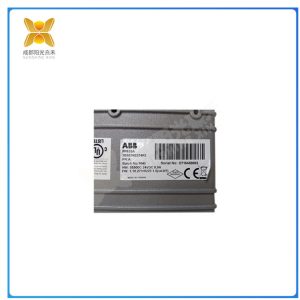

PP835A 3BSE042234R2 集成更多功用，完成紧凑规划，减少了变量的运用U 型衔接器，可自行衔接背板总线节省了装置空间，装置导轨上可装置更多组件最优体系性能，完成快速处理并最大程度保证操控质量选用 PROFINET IRT 进行循环同步操作，最短循环时刻降至 250 μs数字量输入模块，具有 50 μs 的超短输入延时。触摸屏面板具有明亮的TFT/LED显示颜色和多协议连接。Panel 800的标准范围包括PP875, PP881, PP883, PP886和PP895，易于使用的HMI与全面和集成的模板和库，为您所需要的每一个可想而知的过程。所有标准面板都配备了高分辨率的TFT/LED显示图形。大多数型号提供宽屏幕，高分辨率显示，以提高效率和优秀的操作员交互。
PP835A
Panel 800提供一系列操作面板，从简单的按键式面板到高性能面板，从而提供多种通信接口、高速及精美的显示。 我们的操作面板按照显示尺寸和性能水平进行组织，因此您可以针对不同的应用选择优化的HMI解决方案。Panel 800 V6版本主要有标准型和高性能型两类HMI解决方案：高性能操作面板 PP882和PP885能够提供更多的通信接口选项、更快的速度和更精美的显示。标准操作面板包含按键式面板PP874K、PP877K以及触摸式面板PP871、PP874、 PP877，适用于极端环境温度范围。 Panel 800 v5.1版本 包含四种按键式面板PP820A、PP826A、PP836A、PP846A以及六种触摸式面板PP815A、PP825A、PP835A、PP845A和PP865A。
PP835A
PP835A 3BSE042234R2 integrates more functions to achieve compact planning and reduce the use of variables. The U-shaped connector can be connected to the backplane bus on its own, saving device space. More components can be installed on the device rail for optimal system performance, achieving fast processing and maximizing control quality. PROFINET IRT is selected for cyclic synchronization operation, with the shortest cycle time reduced to 250 μ S digital input module with 50 μ The ultra short input delay of s. The touch screen panel features bright TFT/LED display colors and multi protocol connections. The standard range of Panel 800 includes PP875, PP881, PP883, PP886, and PP895, with easy-to-use HMI and comprehensive and integrated templates and libraries for every conceivable process you need. All standard panels are equipped with high-resolution TFT/LED display graphics. Most models offer wide screens and high-resolution displays to improve efficiency and excellent operator interaction.
PP835A
The Panel 800 provides a series of operation panels, ranging from simple button based panels to high-performance panels, providing a variety of communication interfaces, high-speed, and exquisite displays. Our operation panel is organized according to display size and performance level, so you can choose optimized HMI solutions for different applications. The Panel 800 V6 version mainly has two types of HMI solutions: standard and high-performance: the high-performance operation panels PP882 and PP885 can provide more communication interface options, faster speed, and more exquisite display. The standard operation panel includes button type panels PP874K, PP877K, and touch type panels PP871, PP874, and PP877, suitable for extreme environmental temperature ranges. The Panel 800 v5.1 version includes four button based panels, PP820A, PP826A, PP836A, PP846A, and six touch based panels, PP815A, PP825A, PP835A, PP845A, and PP865A.
PP835A
PLC控制器本身的硬件采用积木式结构，各厂家产品结构大同小异。以日本欧姆龙C200HE为例，为总线模板框式结构，基本框架(CPU母板)上装有CPU模板，其它槽位装有I/O模板;如果I/O模板多时，可由CPU母板经I/O扩展电缆连接I/O扩展母板，在其上装I/O模板;另一种方法是配备远程I/O从站等。这些都说明了PLC厂家将硬件各部件均向用户开发，便于用户选用，配置成规模不等的PLC，而且这种硬件配置的开放性，为制造商、分销商(代理商)、系统集成商、最终用户带来很多方便，为营销供应链带来很大便利，这是一大成功经验。
PP835A
