伺服电机是一种能够精确控制转动角度或位置的电机。其工作原理是通过控制电机转子上的位置传感器与控制器之间的反馈信号，来精确控制电机的角度或位置。当控制器接收到控制信号后，它会将信号与电机的反馈信号进行比较，然后通过调节电机的电流来实现精确的位置或角度控制。这种控制方式通常被广泛应用于需要精确位置控制的自动化设备、机器人和其他工业应用中。伺服运动控制卡是一种用于控制伺服电机的硬件设备，其工作原理可以简单地描述为以下几个步骤:传感器采集:伺服电机需要通过传感器来感知其运动状态和位置，这些传感器可以是编码器、霍尔传感器等。

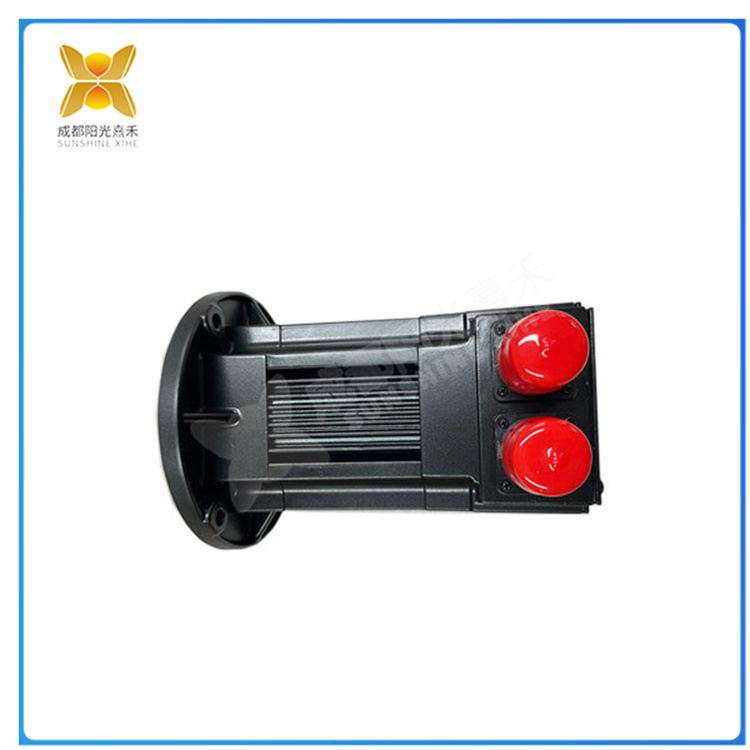

R43HCNAR2NSVS00
控制器计算:伺服运动控制卡中的控制器会将传感器采集到的信息进行处理和计算，得出电机的位置、速度、加速度等参数，并根据预设的运动轨迹和控制算法进行控制。电机驱动:控制器计算出的控制信号会经过放大器放大后送到电机驱动器中，通过控制电机的电流、电压等来实现电机的运动。反馈控制:伺服电机的运动状态会通过传感器实时反馈回控制器中，控制器会根据反馈信息对电机进行调整，使其尽可能地接近预设的运动轨迹并保持稳定。总的来说，伺服运动控制卡利用传感器采集电机运动状态，控制器计算控制信号并通过驱动器控制电机运动，同时通过反馈控制实时调整电机运动状态，以实现精准控制和稳定运动。
R43HCNAR2NSVS00
PLC中的旋转伺服是一种用于控制轴旋转运动的电子设备。它通过接收PLC输出的控制信号，将电机驱动并控制其实现特定的旋转角度和速度。旋转伺服通常由电机、位置编码器和控制器组成。旋转伺服的工作原理主要分为两个过程:反馈过程和调整过程。反馈过程中，位置编码器感知电机的实际位置，并将该信息反馈给控制器。控制器将实际位置与期望位置进行比较，根据误差计算出控制信号。调整过程中，控制器将控制信号发送到电机，通过调整驱动电流从而实现电机的精确位置控制。
R43HCNAR2NSVS00
A servo motor is a type of motor that can accurately control the rotation angle or position. Its working principle is to accurately control the angle or position of the motor by controlling the feedback signal between the position sensor on the motor rotor and the controller. When the controller receives the control signal, it will compare the signal with the feedback signal of the motor, and then achieve precise position or angle control by adjusting the current of the motor. This control method is usually widely used in automation equipment, robots, and other industrial applications that require precise position control. Servo motion control card is a hardware device used to control servo motors. Its working principle can be simply described as the following steps: sensor acquisition: Servo motors need to sense their motion status and position through sensors, which can be encoders, Hall sensors, etc
R43HCNAR2NSVS00
Controller calculation: The controller in the servo motion control card will process and calculate the information collected by the sensor, obtain the position, speed, acceleration and other parameters of the motor, and control it based on the preset motion trajectory and control algorithm. Motor drive: The control signal calculated by the controller will be amplified by an amplifier and sent to the motor driver to control the motor’s current, voltage, etc. to achieve motor movement. Feedback control: The motion status of the servo motor will be fed back to the controller in real-time through sensors. The controller will adjust the motor based on the feedback information to make it as close to the preset motion trajectory as possible and maintain stability. Overall, the servo motion control card utilizes sensors to collect motor motion status, the controller calculates control signals and controls motor motion through the driver. At the same time, the motor motion status is adjusted in real-time through feedback control to achieve precise control and stable motion
R43HCNAR2NSVS00
The rotary servo in PLC is an electronic device used to control the rotation movement of the shaft. It drives the motor and controls it to achieve a specific rotation angle and speed by receiving control signals output by the PLC. Rotary servo usually consists of a motor, position encoder, and controller. The working principle of rotary servo is mainly divided into two processes: feedback process and adjustment process. During the feedback process, the position encoder senses the actual position of the motor and feeds this information back to the controller. The controller compares the actual position with the expected position and calculates the control signal based on the error. During the adjustment process, the controller sends control signals to the motor and achieves precise position control of the motor by adjusting the driving current.
