保护单元：REF542PLUS 的核心是保护单元，它用于监测电力系统中的各种参数，例如电流、电压、频率等，以便及时检测并响应电力系统中的异常情况。控制单元：REF542PLUS 通常包括控制功能，使其能够执行各种控制操作，例如断路器的操作、投入和退出电源线路等。通信接口：该设备通常具有各种通信接口，以便与其他设备和监控系统进行数据交换。这可以包括串口、以太网接口等，用于实现监控和控制远程电力系统的功能。显示和操作界面：通常 REF542PLUS 配备有显示屏和键盘，以便操作员可以直接在设备上监控电力系统状态并进行基本设置和操作。输入/输出接口：该设备通常具有数字和模拟输入/输出接口，用于连接传感器、执行器和其他外部设备，以实现对电力系统的更高级别的监控和控制。保护功能：REF542PLUS 通常提供多种电力系统保护功能，例如过流保护、过压保护、短路保护等，以确保电力系统的安全和稳定运行。事件记录：它通常具有事件记录功能，用于记录电力系统中发生的事件和故障，以进行后续的分析和故障排除。

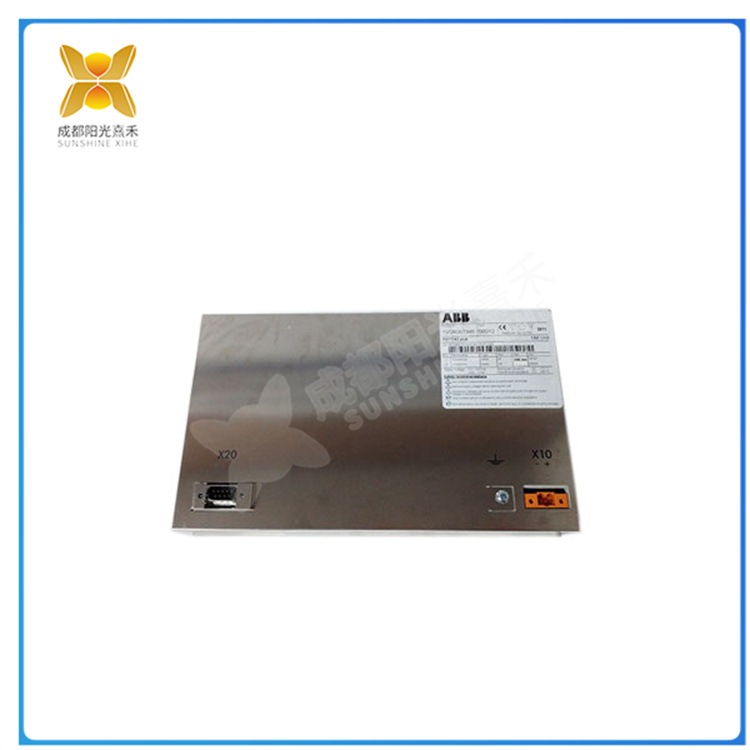

REF542PLUS
REF542PLUS
Protection unit: The core of REF542PLUS is the protection unit, which is used to monitor various parameters in the power system, such as current, voltage, frequency, etc., in order to detect and respond to abnormal situations in the power system in a timely manner. Control unit: REF542PLUS usually includes control functions to enable it to perform various control operations, such as circuit breaker operation, switching on and off power lines, etc. Communication interface: This device typically has various communication interfaces for data exchange with other devices and monitoring systems. This can include serial ports, Ethernet interfaces, and other functions for monitoring and controlling remote power systems. Display and operation interface: Generally, REF542PLUS is equipped with a display screen and keyboard, so that the operator can directly monitor the power system status and perform basic settings and operations on the device. Input/Output Interface: This device typically has digital and analog input/output interfaces for connecting sensors, actuators, and other external devices to achieve higher-level monitoring and control of the power system. Protection function: REF542PLUS usually provides various power system protection functions, such as overcurrent protection, overvoltage protection, short circuit protection, etc., to ensure the safe and stable operation of the power system. Event recording: It usually has event recording function, which is used to record events and faults that occur in the power system for subsequent analysis and troubleshooting
REF542PLUS
ABB REF542PLUS has three ways to avoid the impact of static electricity: when repairing or replacing components, please first touch the grounded metal to remove static electricity from the body; Do not touch the connectors or IC pins on the circuit board; When electronic components are not in use, please use packaging with electrostatic isolation and place the components inside. Imagine that the components in the PLC are a delicate baby, and those static electricity can cause the baby to die. You will be more likely to approach this issue with the correct attitude.When installing the base (RACK), after determining the positions of various control components and wire slots in the control box, the hole positions should be calibrated according to the dimensions shown on the drawing. After drilling, the fixing screws should be tightened until the base is secure. Before installing the power supply module, it is necessary to pay attention to whether the grounding terminal on the power cord is connected to the metal casing. If not, it must be connected. Poor grounding can lead to a series of problems such as static electricity, surges, external interference, and so on. Due to not being grounded, PLCs are often able to work, so many inexperienced engineers mistakenly believe that grounding is not as important. It’s like climbing a mountain without a protective rope attached. Although the protective rope has no effect when you move forward normally, once you make a mistake, without that rope, your life is over. The grounding of the PLC is equivalent to tying a protective cable to the PLC. When installing the I/O module
